Connector Views
>>
Auxiliary Cabin Heater
>>
System Diagram
System Diagram

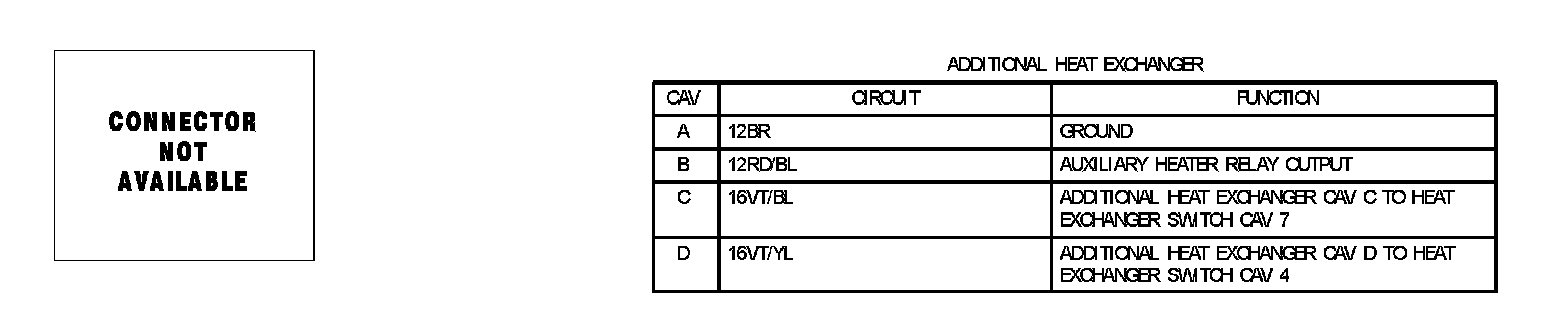

Additional Heat Exchanger:
Cabin Heater Assembly:

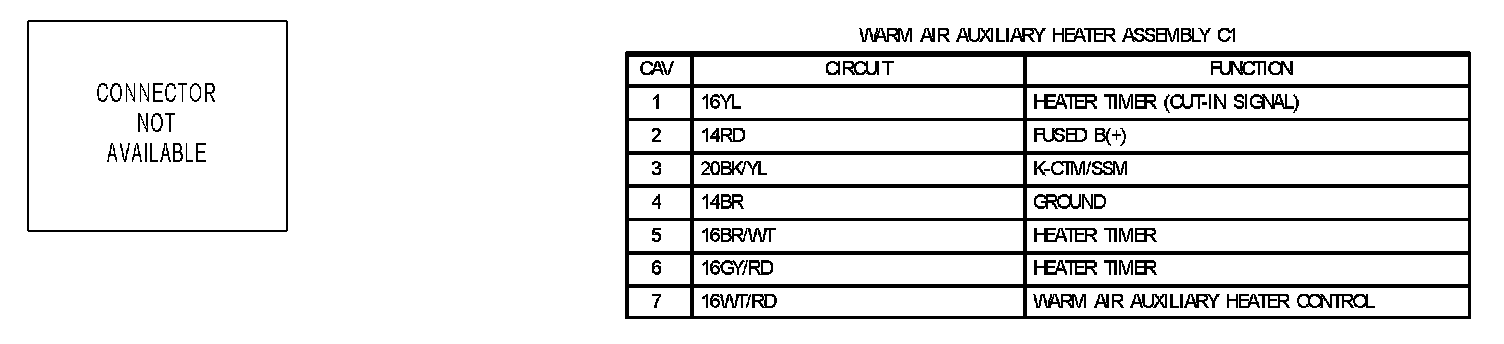

Warm Air Auxiliary Heater Assembly C1:

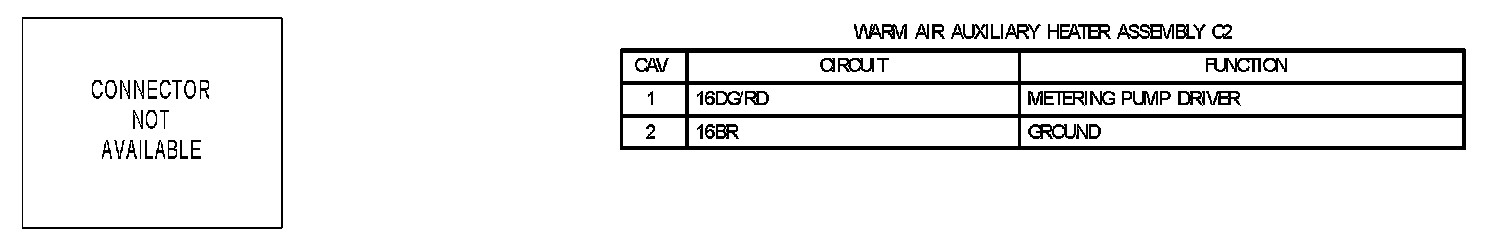

Warm Air Auxiliary Heater Assembly C2:
