Freightliner Truck
>>
2005
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

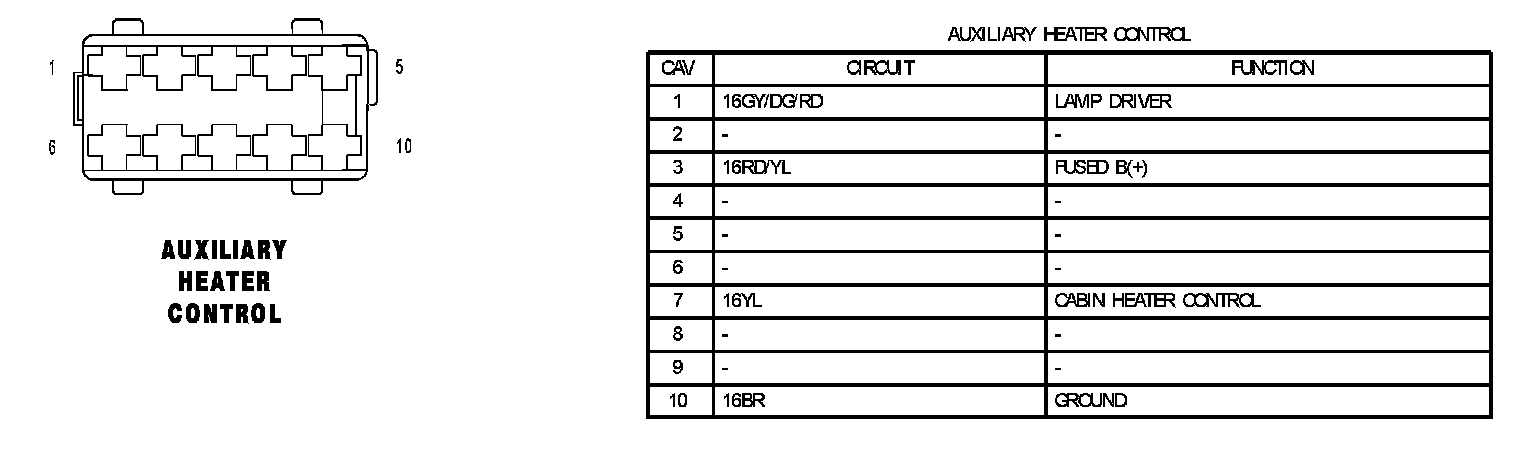

Auxiliary Heater Control:

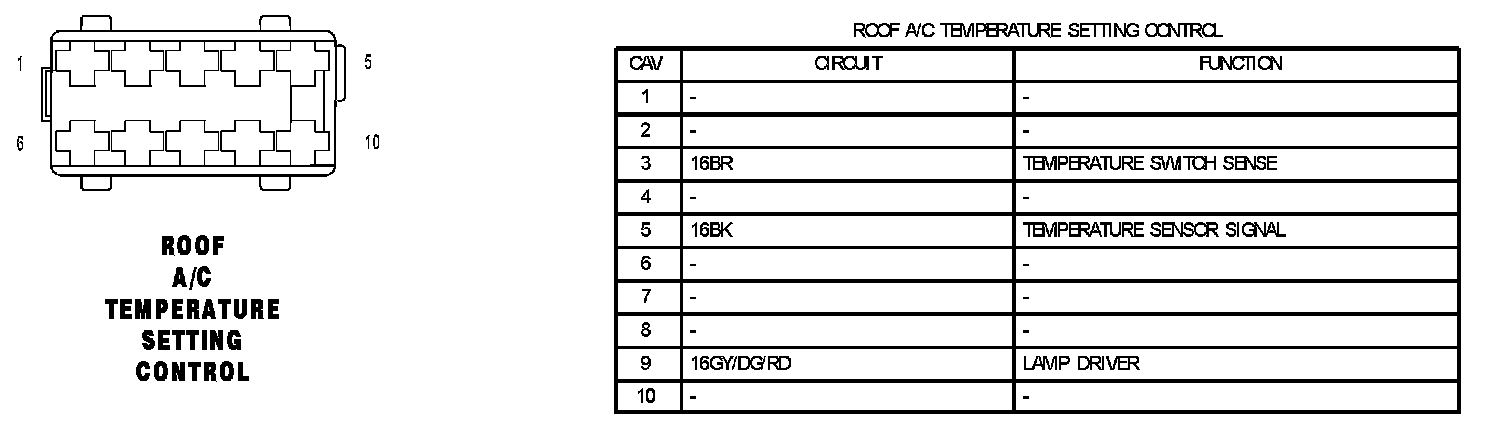

Roof A/C Temperature Setting Control:
