Interior Light Switch

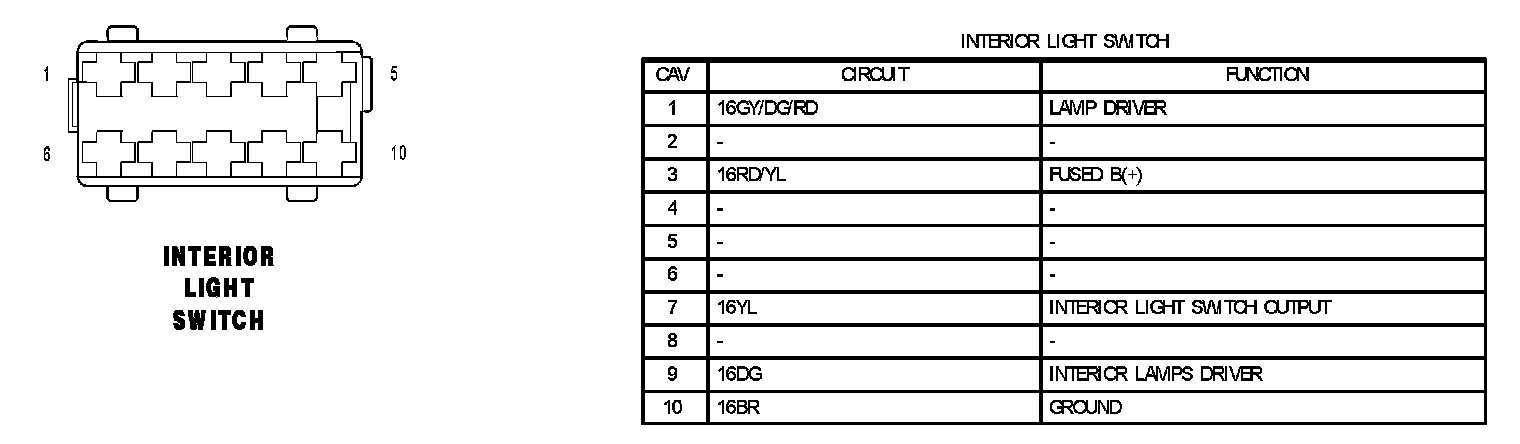

Interior Light Switch:

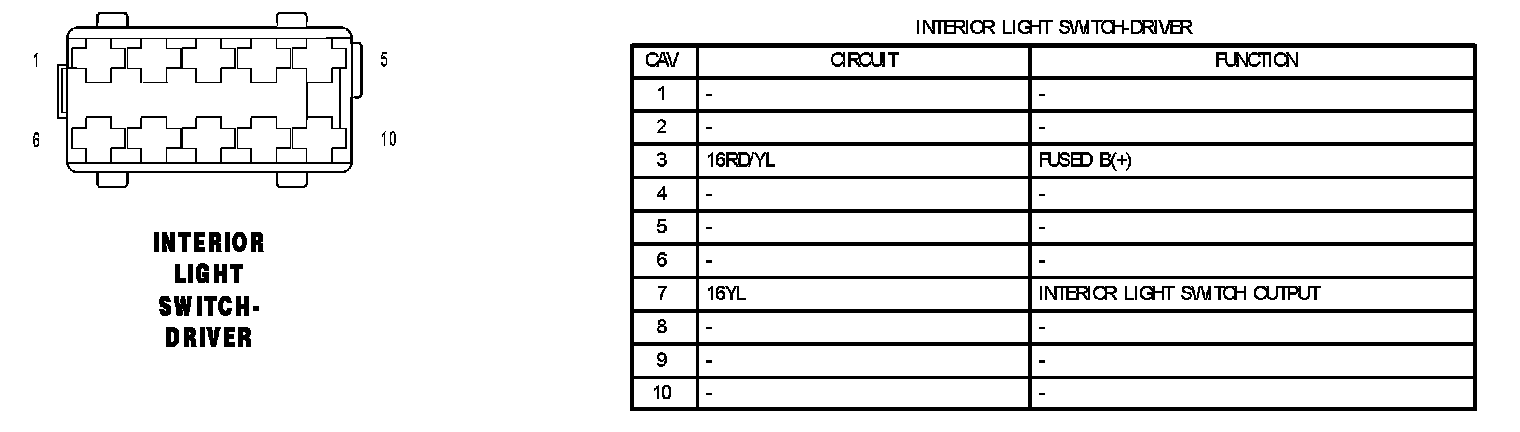

Interior Light Switch - Driver:

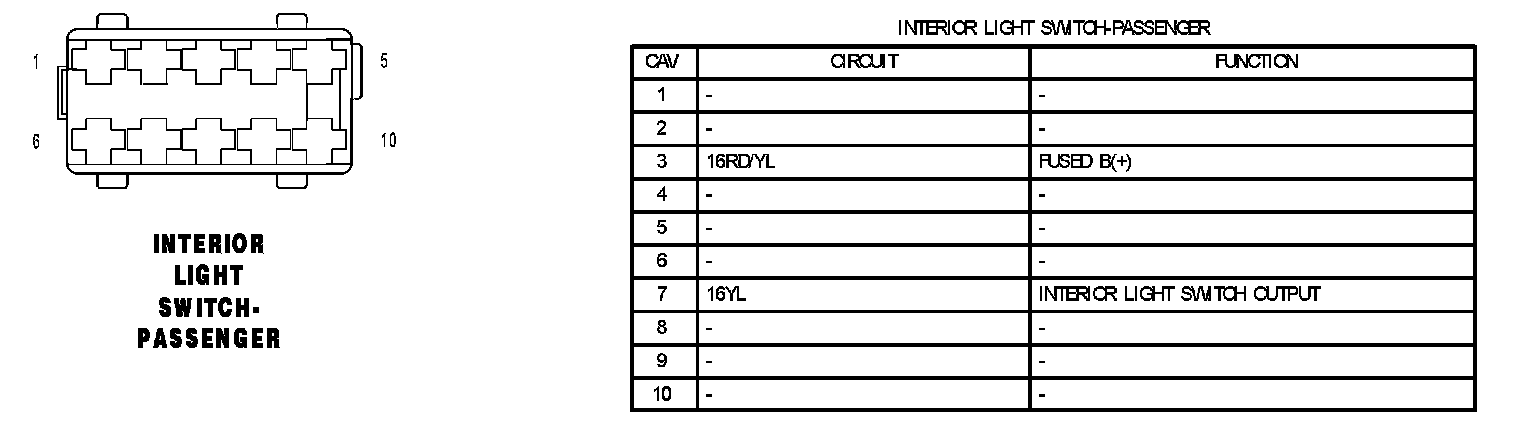

Interior Light Switch - Passenger:

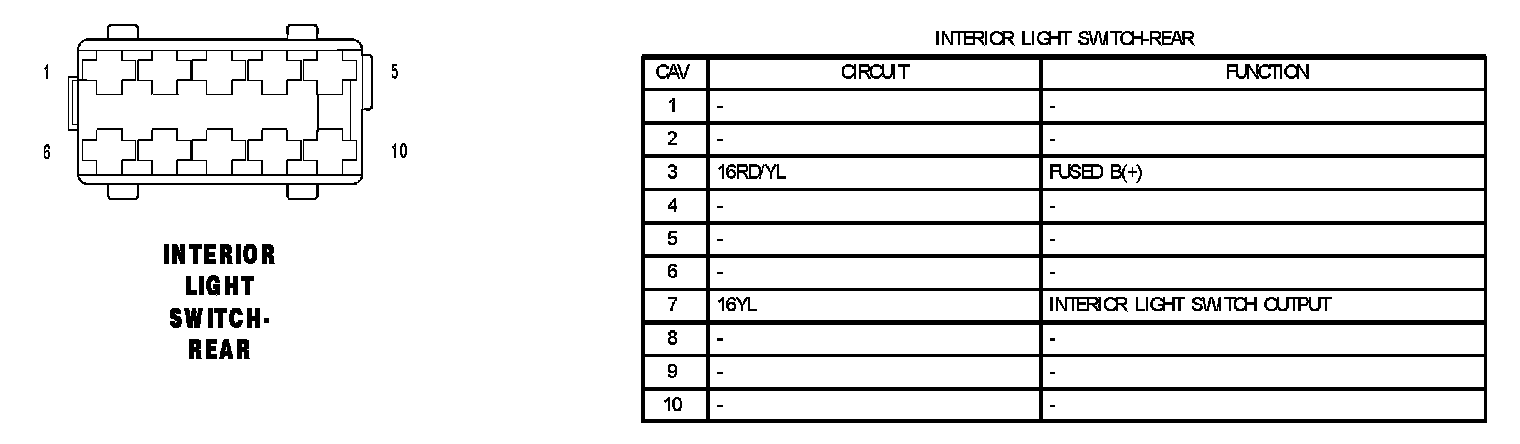

Interior Light Switch - Rear:
