System Diagram

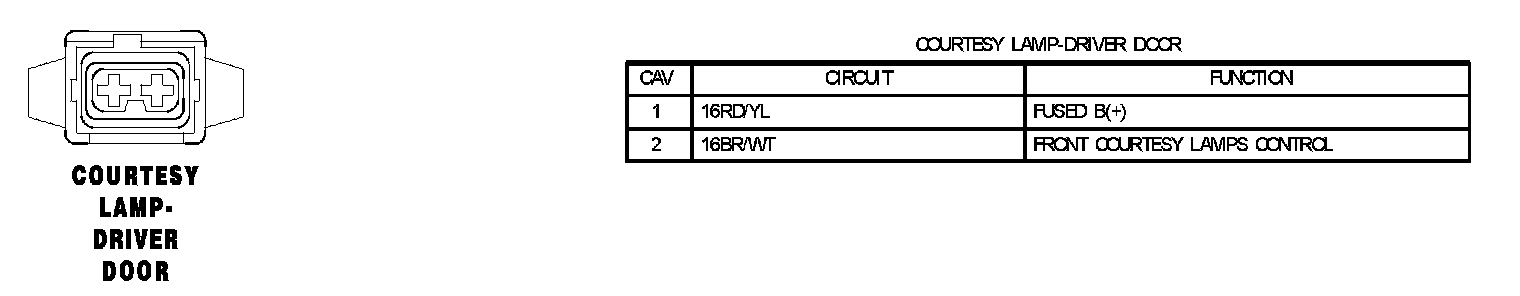

Courtesy Lamp - Driver Door:

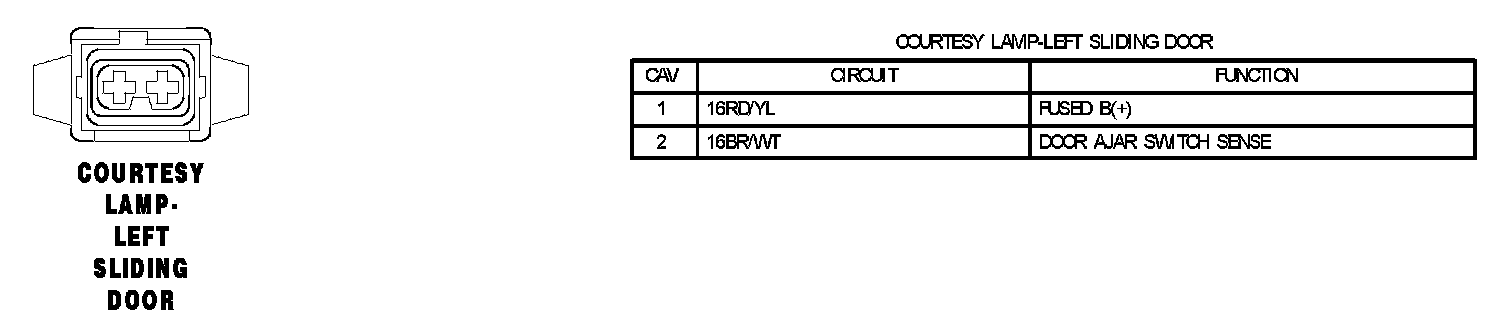

Courtesy Lamp - Left Sliding Door:

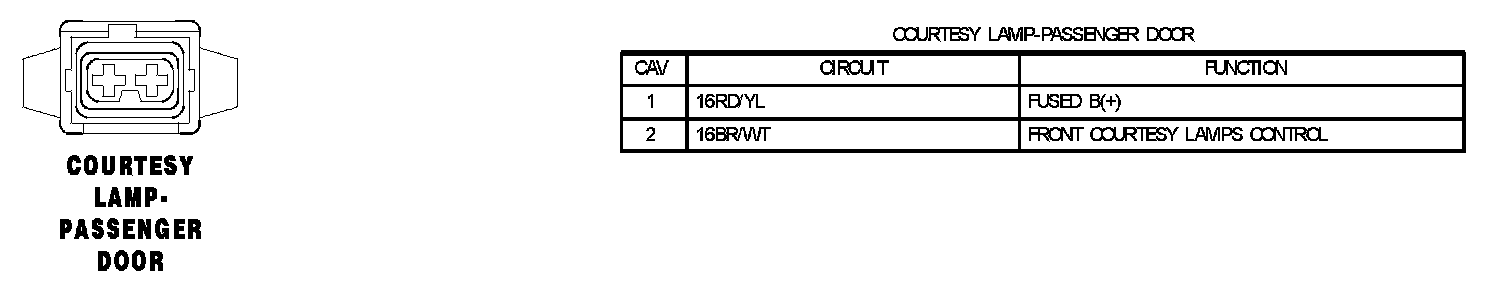

Courtesy Lamp - Passenger Door:

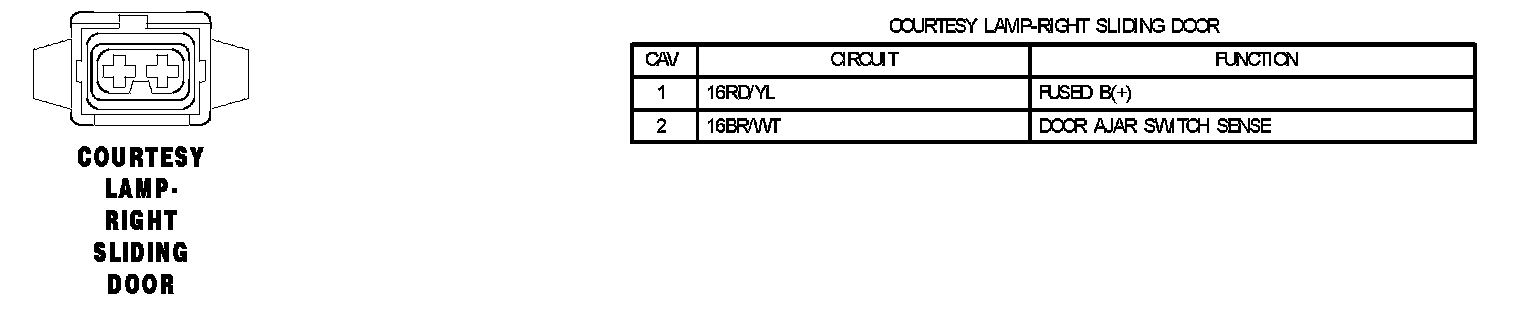

Courtesy Lamp - Right Sliding Door:

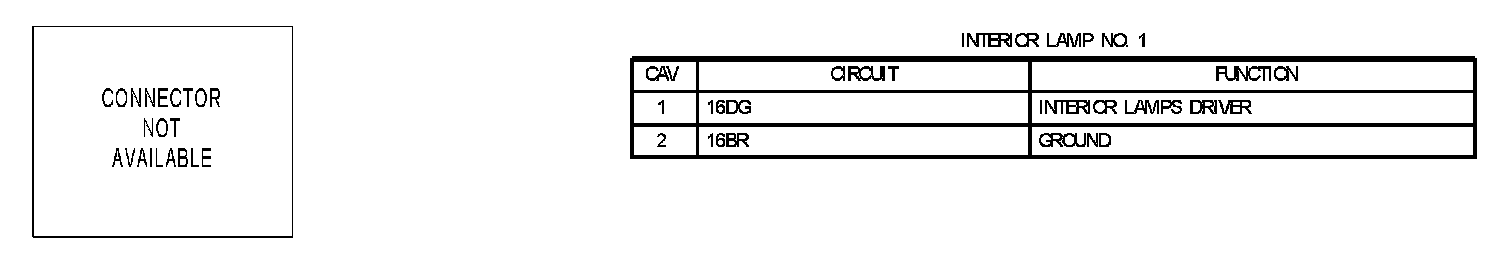

Interior Lamp No.1:

Interior Lamp No.2:

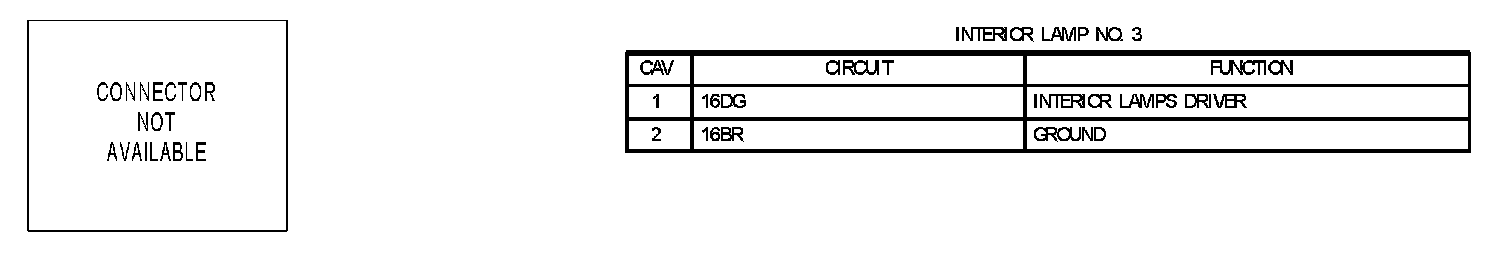

Interior Lamp No.3:

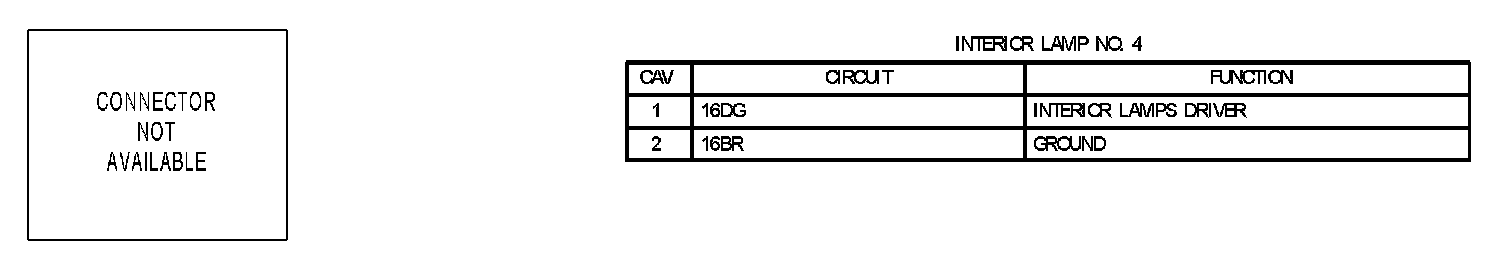

Interior Lamp No.4:

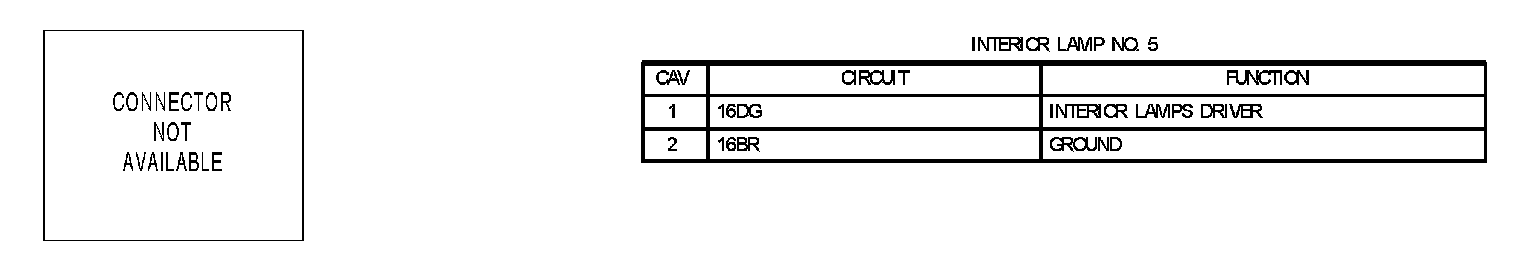

Interior Lamp No.5:

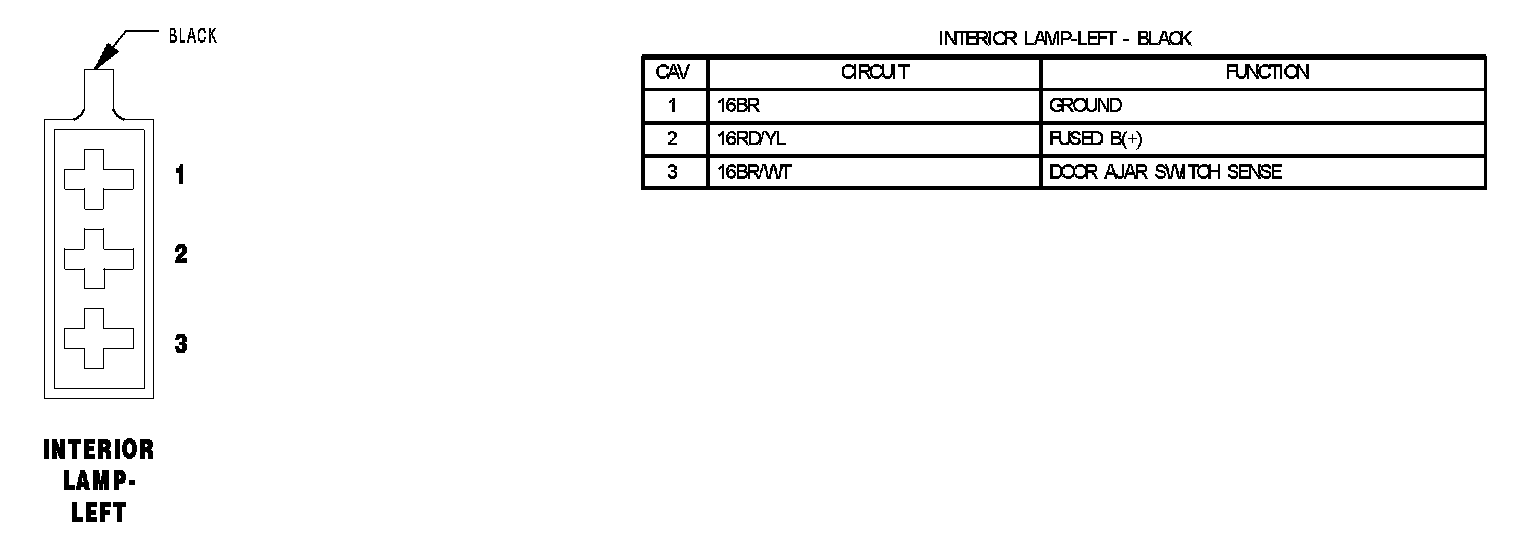

Interior Lamp - Left:

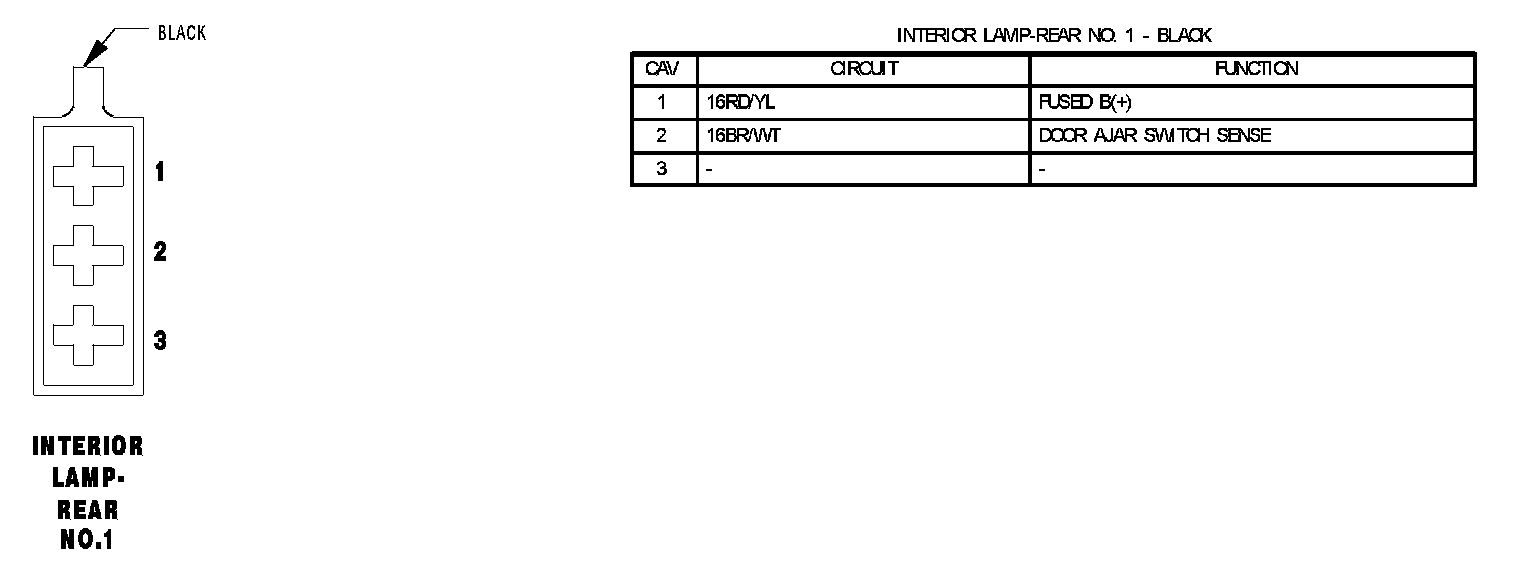

Interior Lamp - Rear No.1:

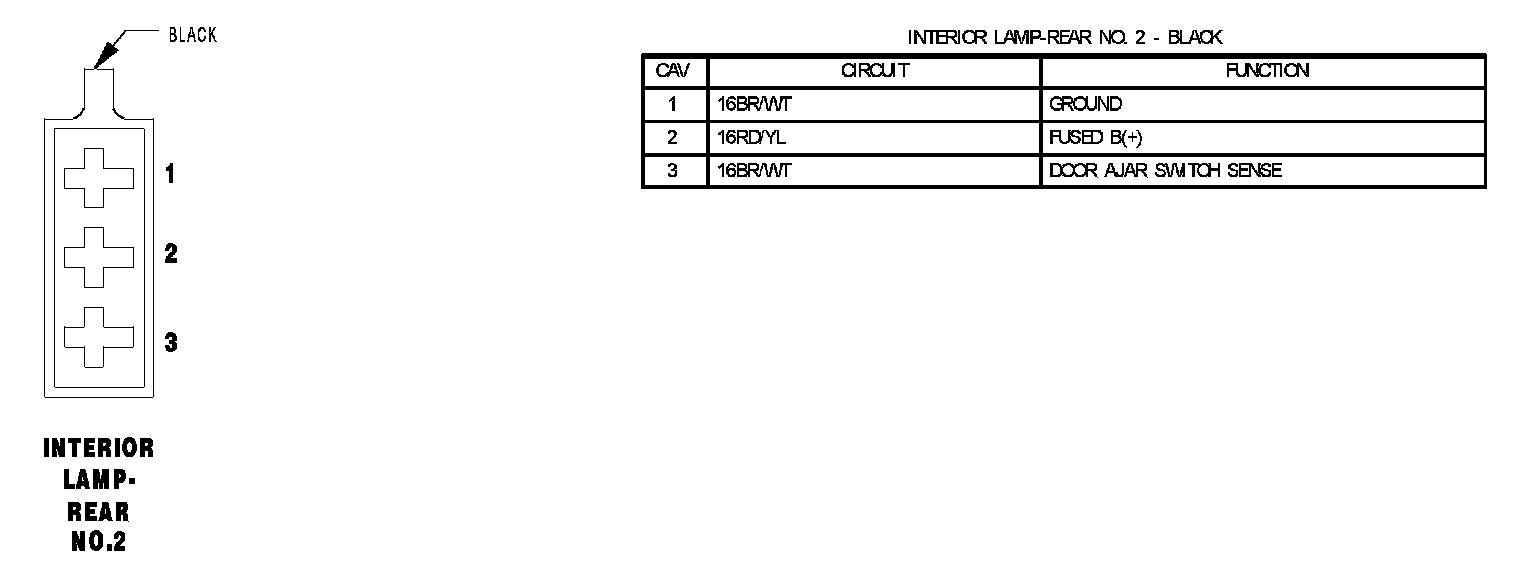

Interior Lamp - Rear No.2:

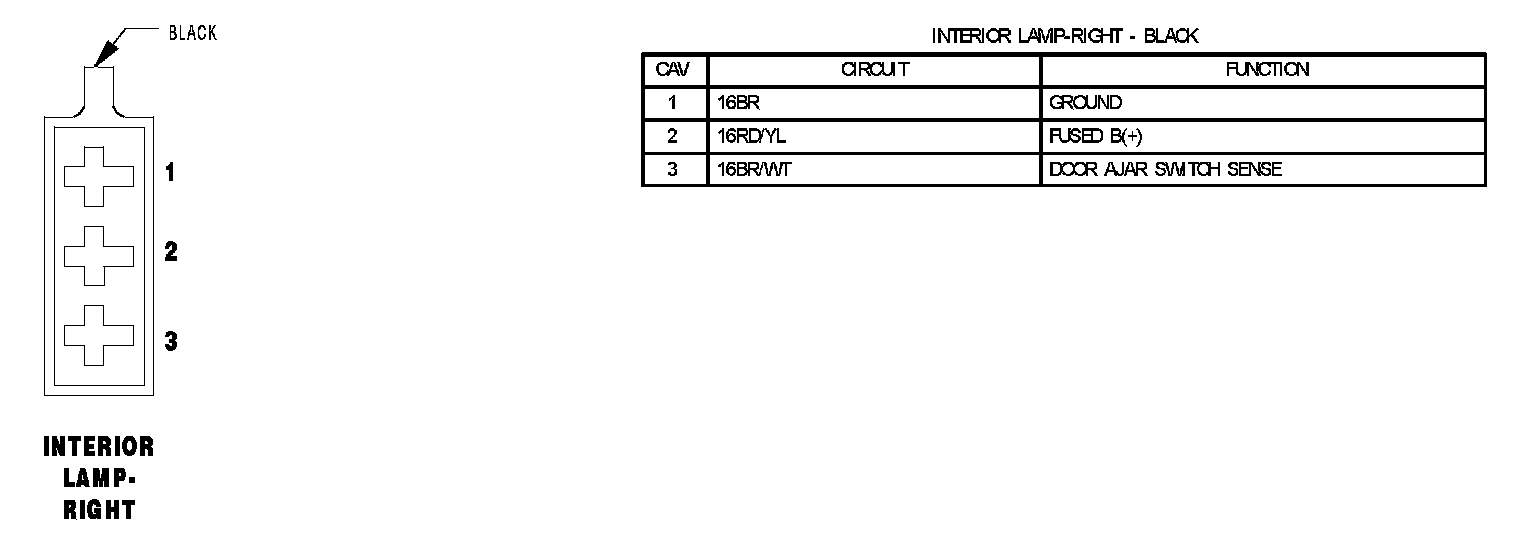

Interior Lamp - Right:

Interior Lighting Connector:
