Freightliner Truck
>>
2005
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Control Module
Power Window Control Module

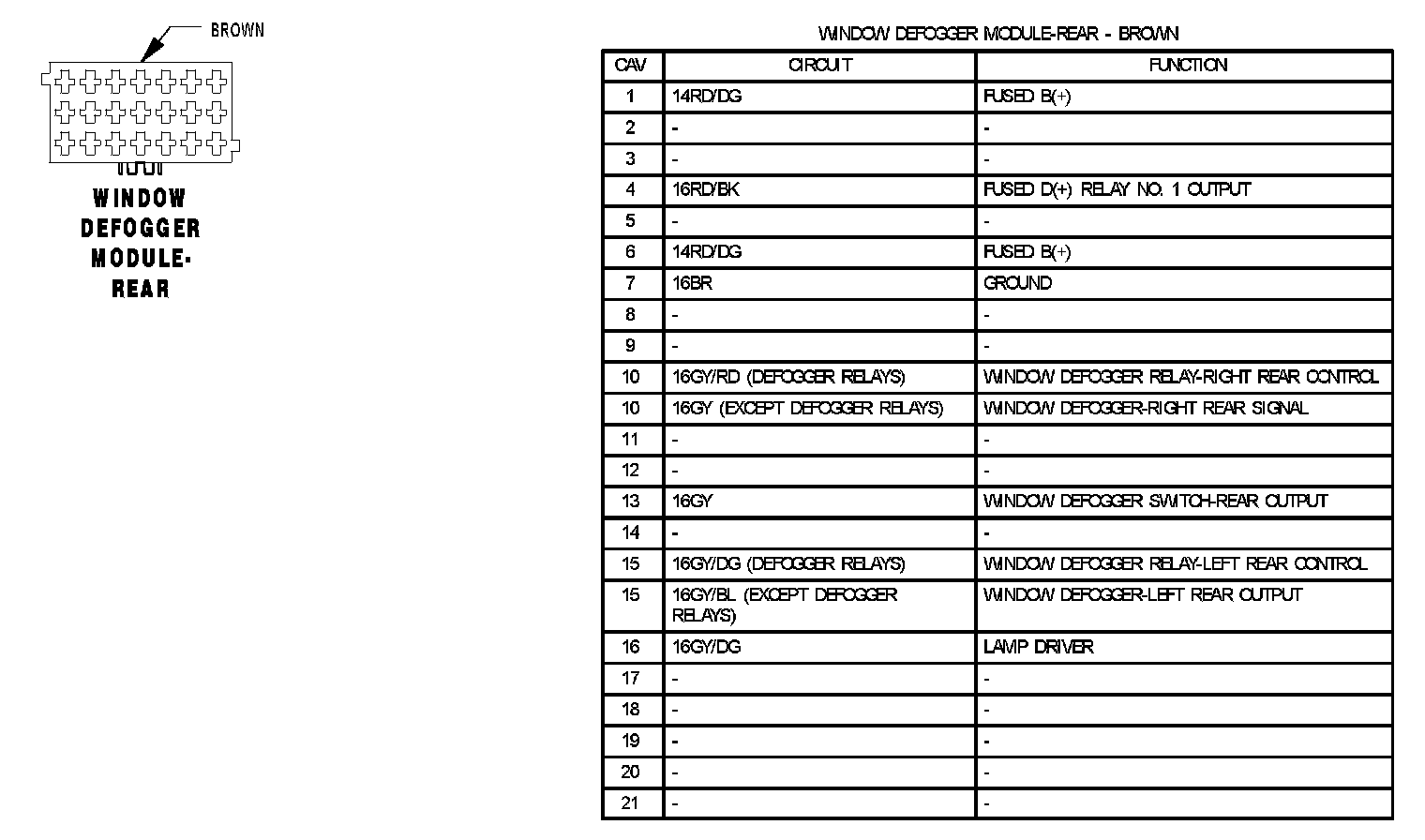

Window Defogger Module - Rear:
