Seat Temperature Switch
Seat Temperature Switch

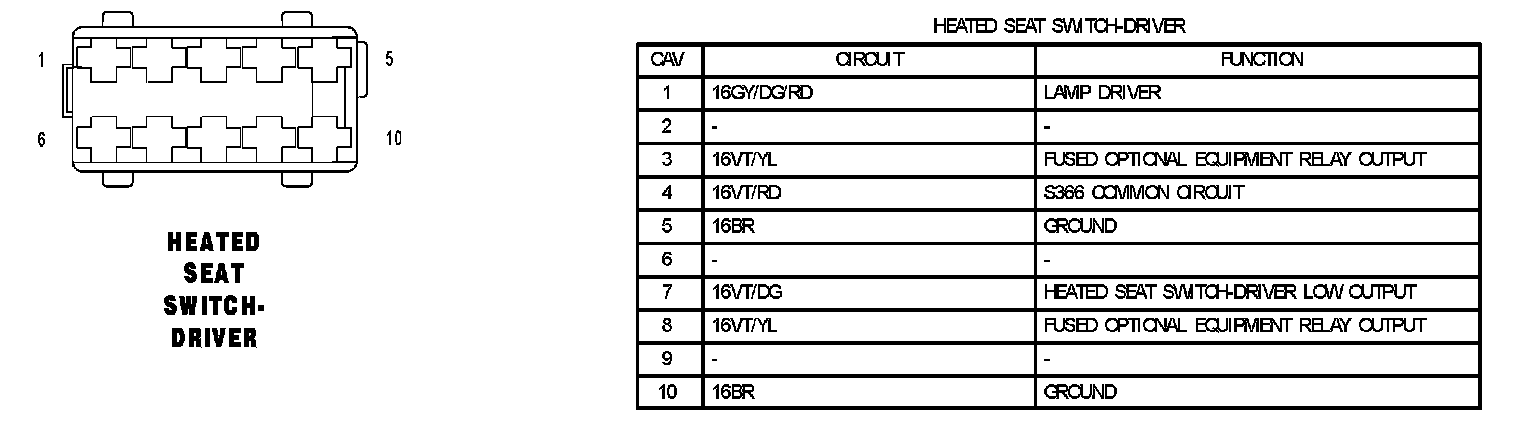

Heated Seat Switch - Driver:

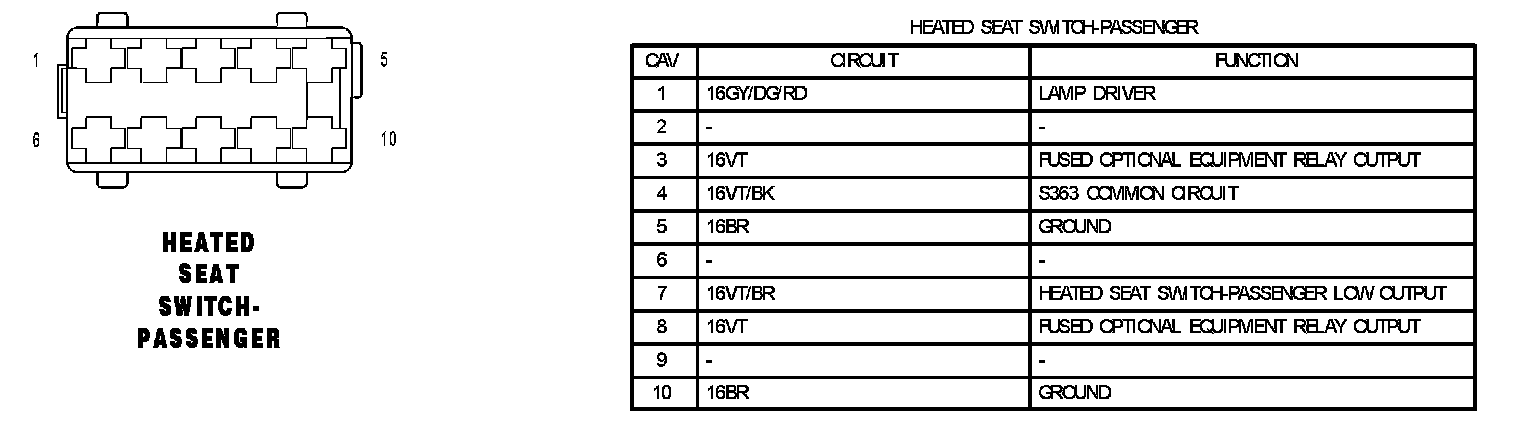

Heated Seat Switch - Passenger:
