Figure 17
Figure 17

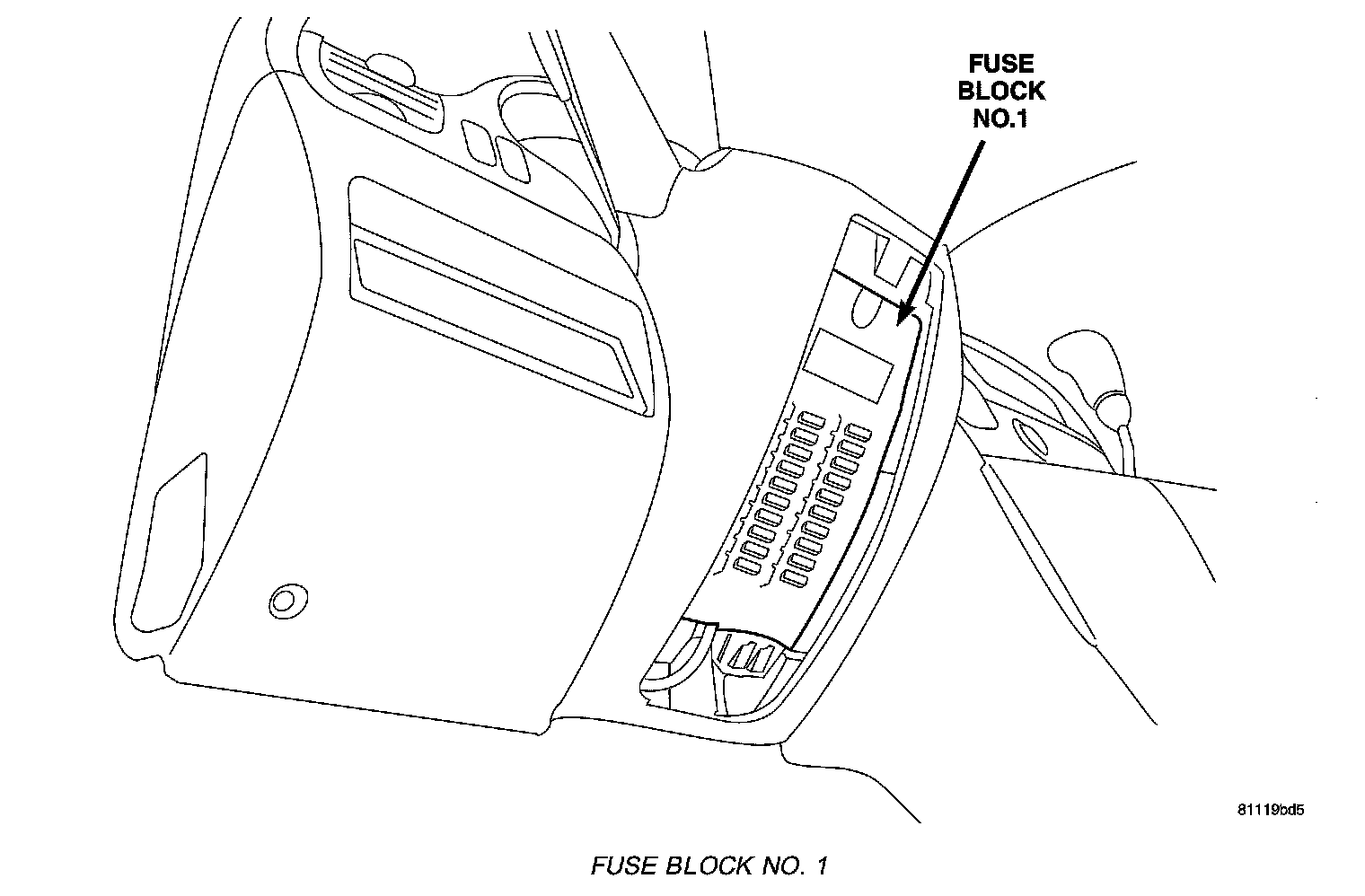

Fuse Block No.1:

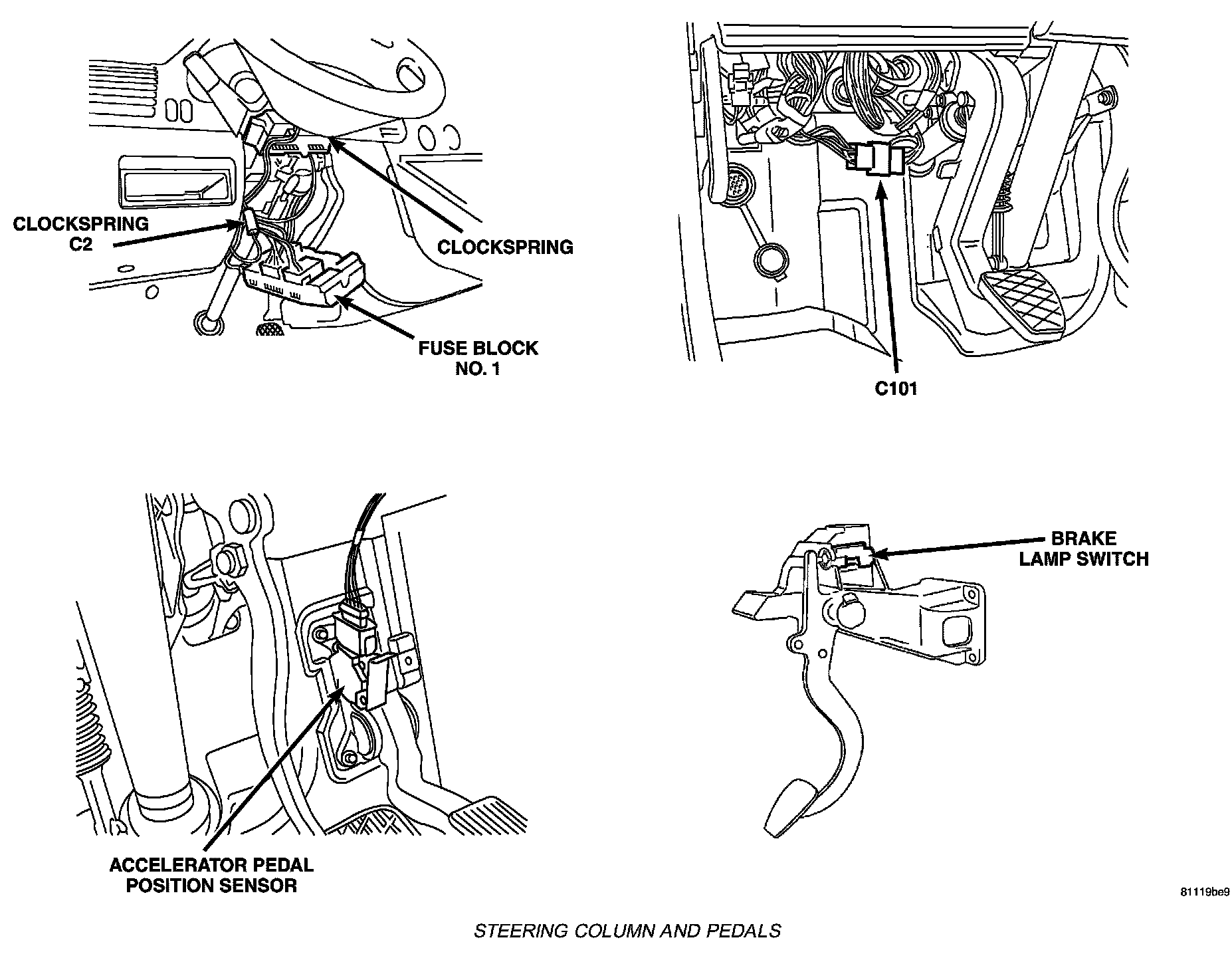

Steering Column And Pedals:

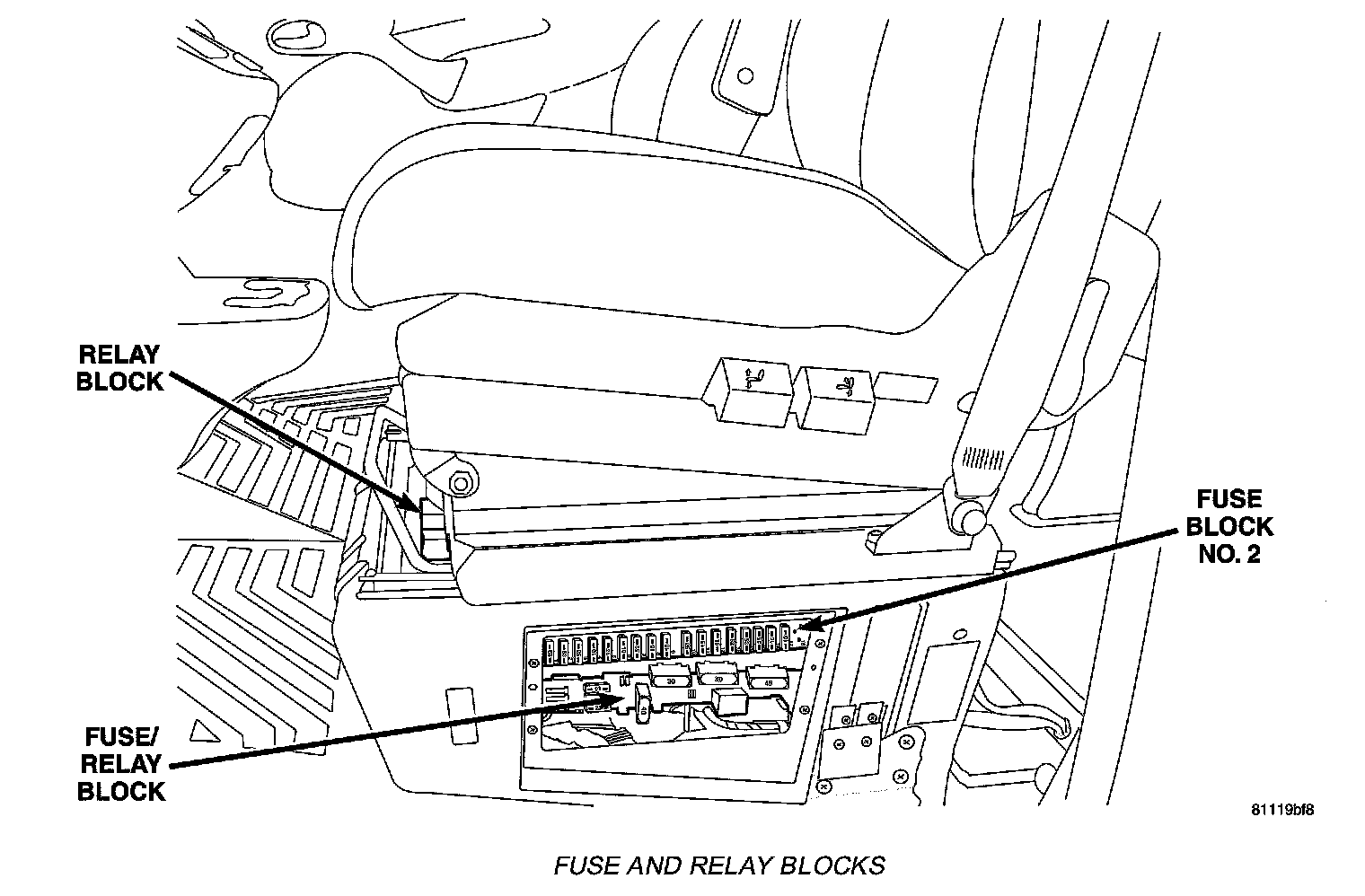

Fuse And Relay Blocks:

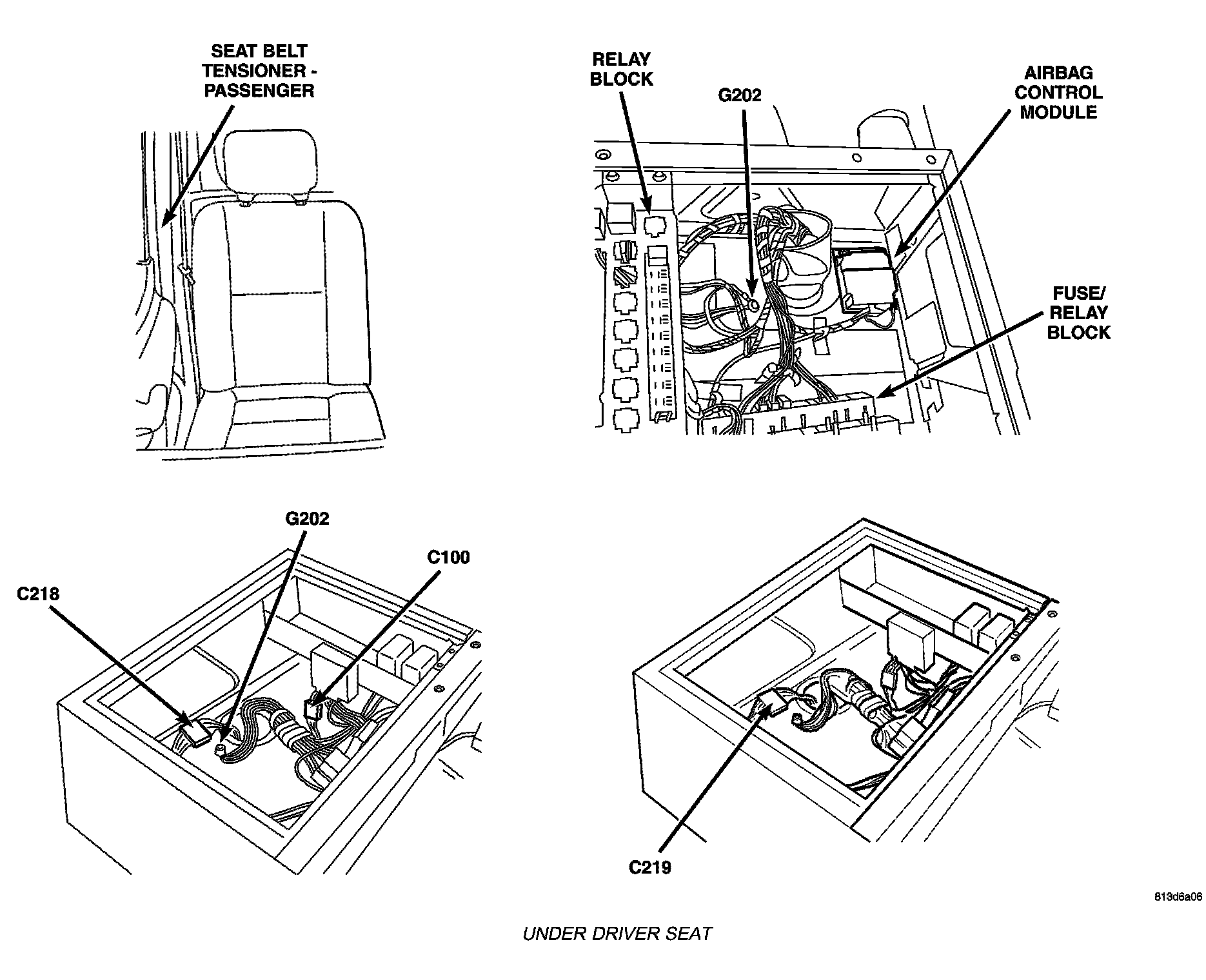

Under Driver Seat:
