Door Switch: Locations

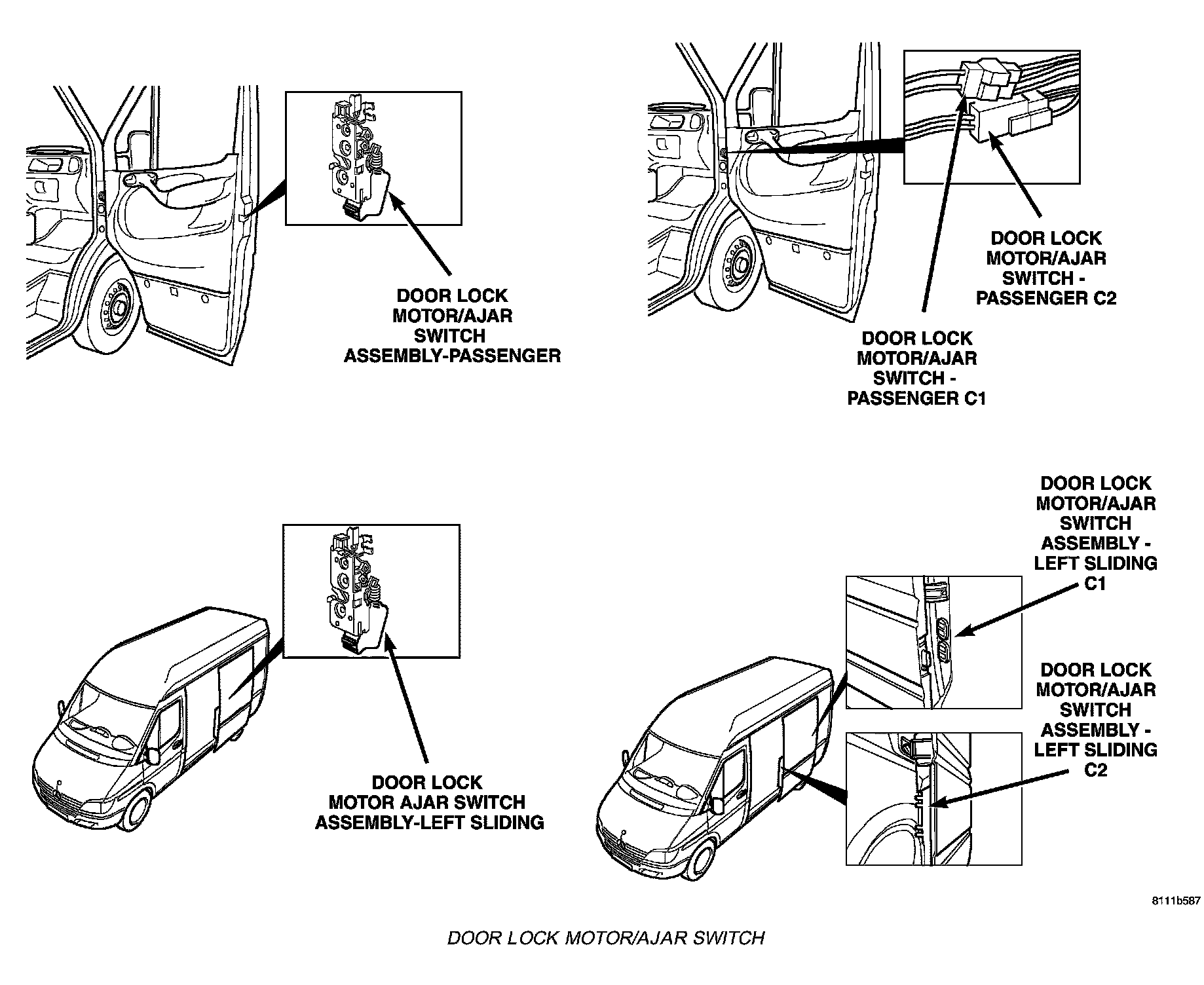

Door Lock Motor/ajar Switch:

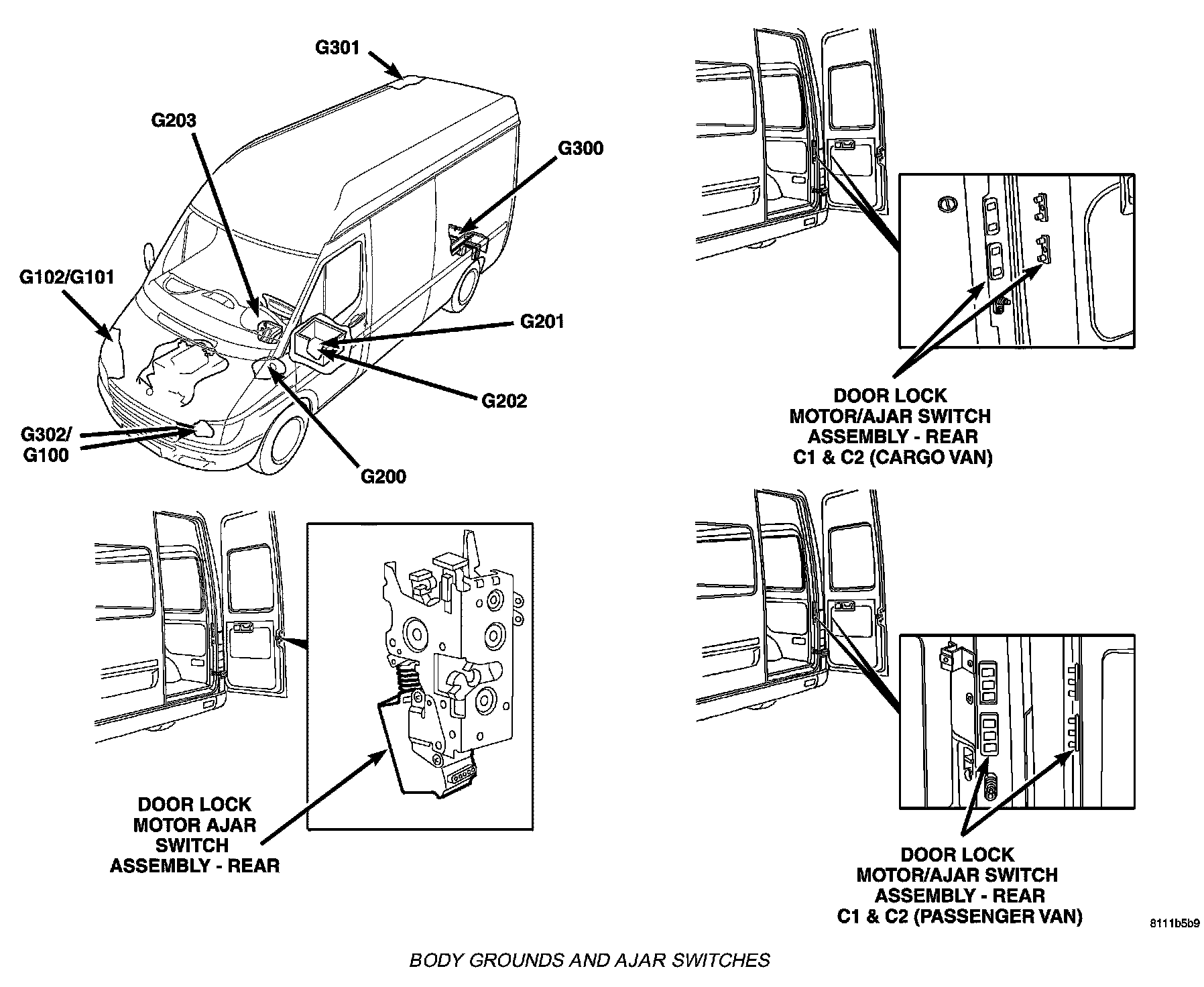

Body Grounds And Ajar Switches:

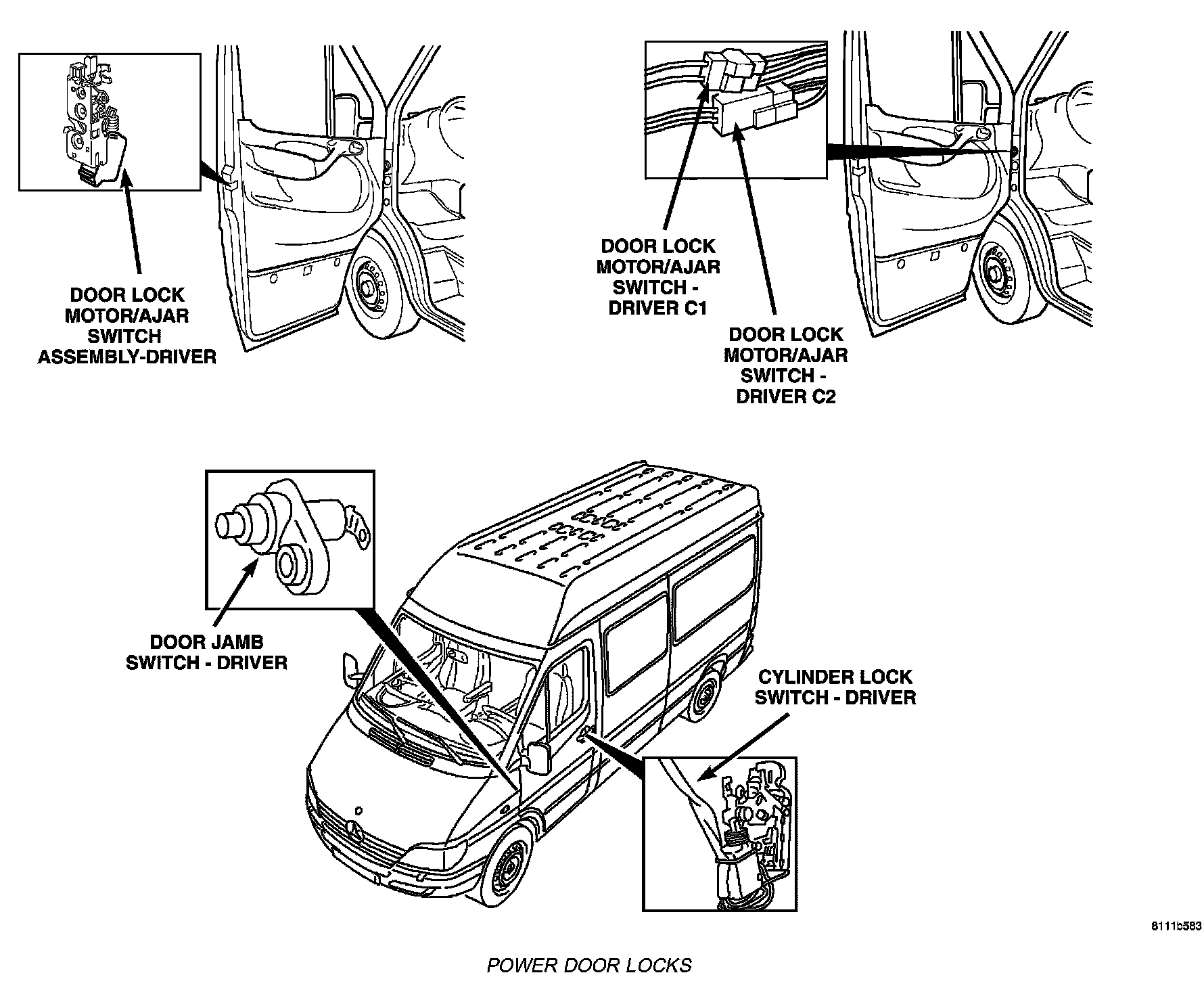

Power Door Locks:
