Checking the Fuel Pressure Sensor Circuits
Checking the Fuel Pressure Sensor Circuits

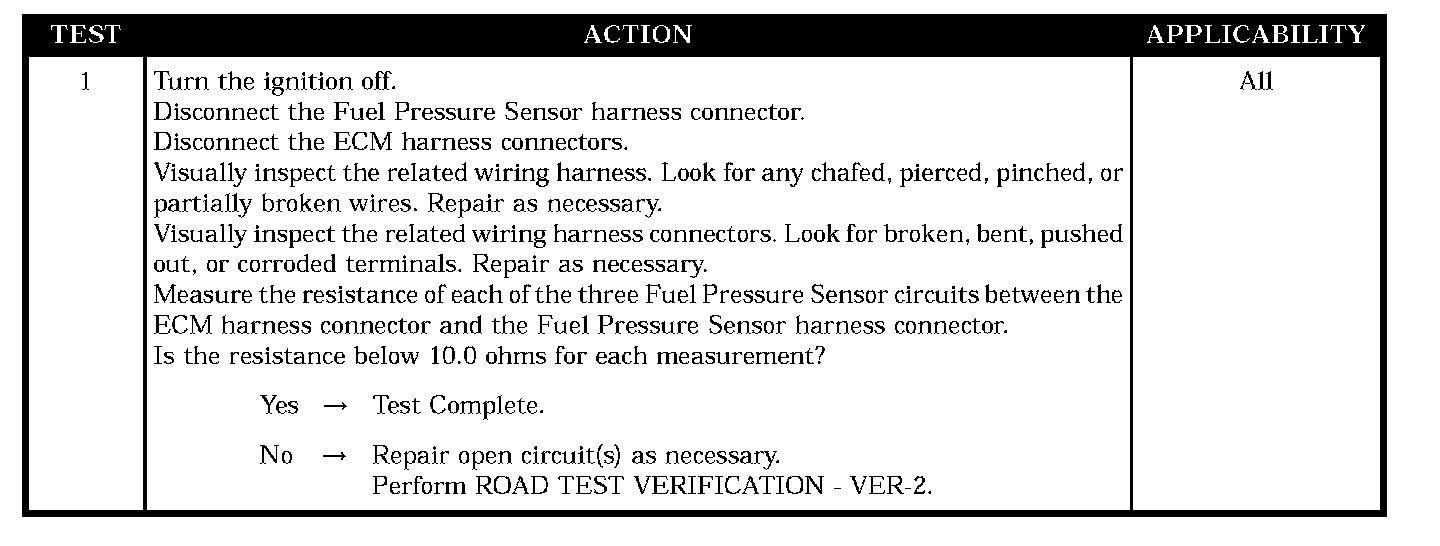

Test 1:
SYMPTOM
CHECKING THE
FUEL PRESSURE SENSOR
CIRCUITS
POSSIBLE CAUSES
-
Open circuits
