Operation CHARM
: Car repair manuals for everyone.
Home
>>
Freightliner Truck
>>
2006
>>
Sprinter 3500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Switch, Differential Lock
Switch, Differential Lock

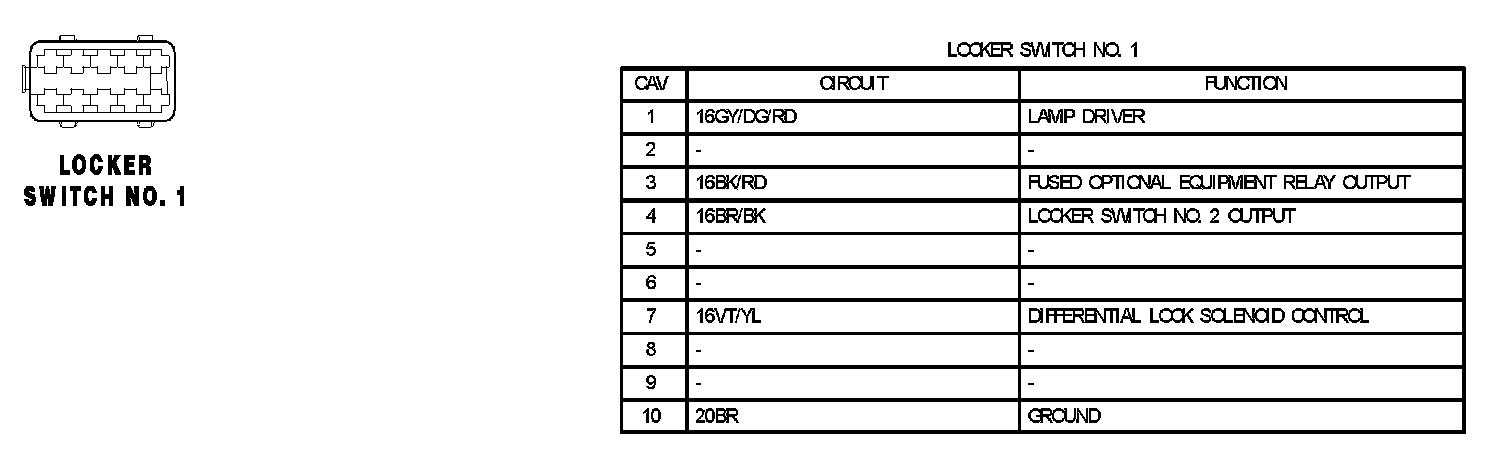

Locker Switch No.1:

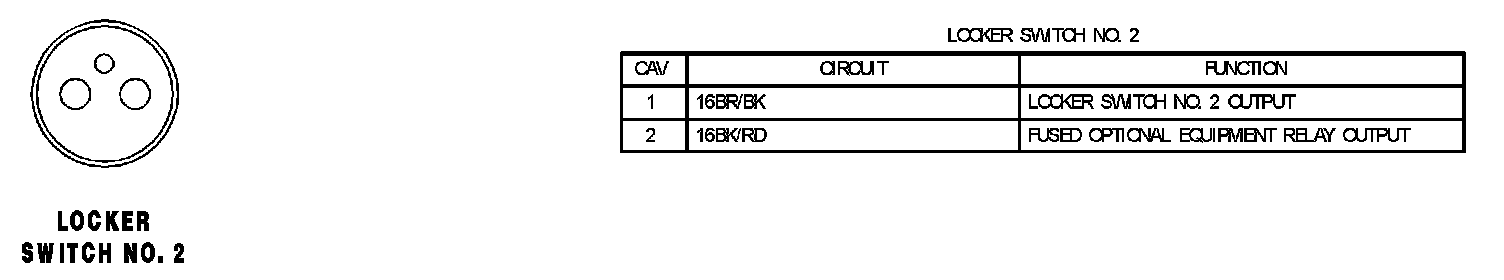

Locker Switch No.2:
