Freightliner Truck
>>
2007
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Main Relay (Computer/Fuel System)
>>

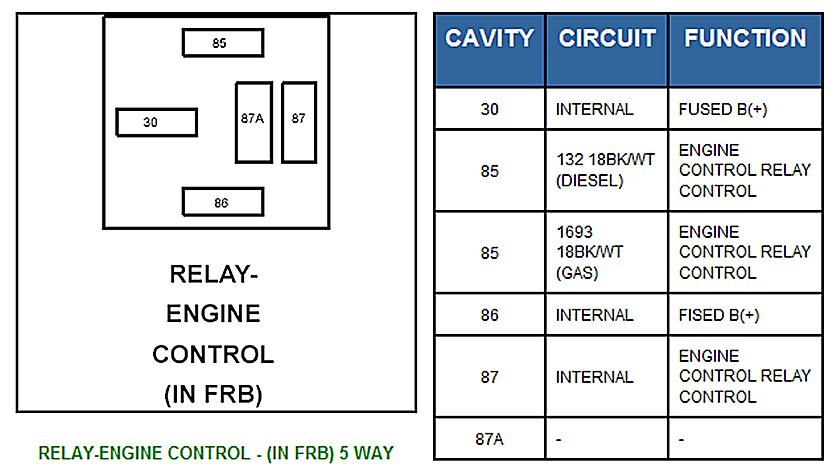

Engine Control Relay (In FRB) 5 Way
Engine Control Relay (In FRB) 5 Way
