Park Assist Module C2 (HLS) 12 Way

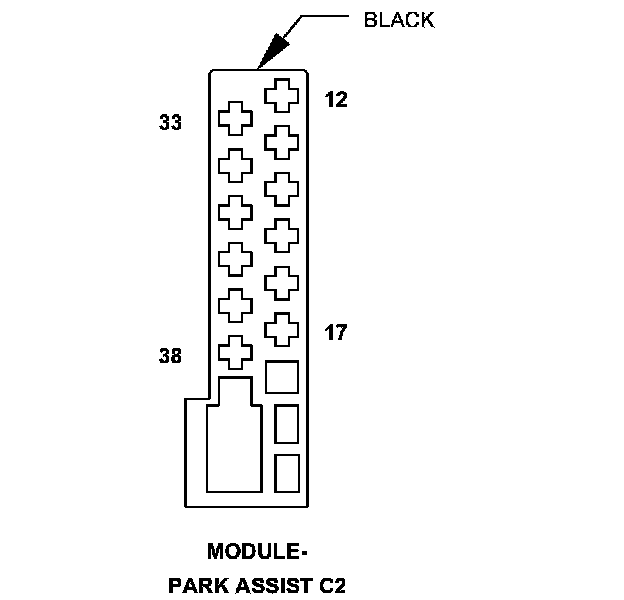

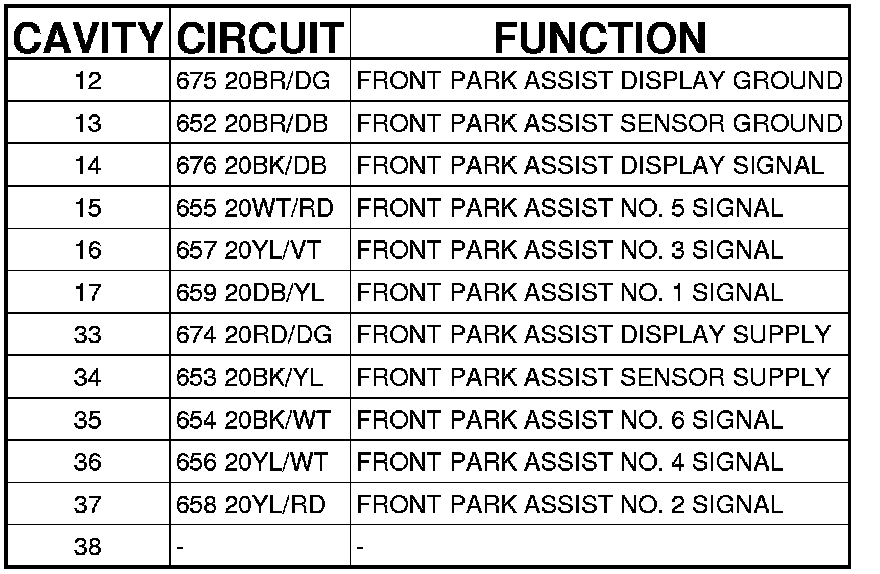

Connector C2 - (HLS) 12 WAY




MODULE-PARK ASSIST - (HLS) 12 WAY
