Additional Turn Signal Control Module (HLS) 20 Way
Additional Turn Signal Control Module (HLS) 20 Way
Connector - (HLS) 20 WAY

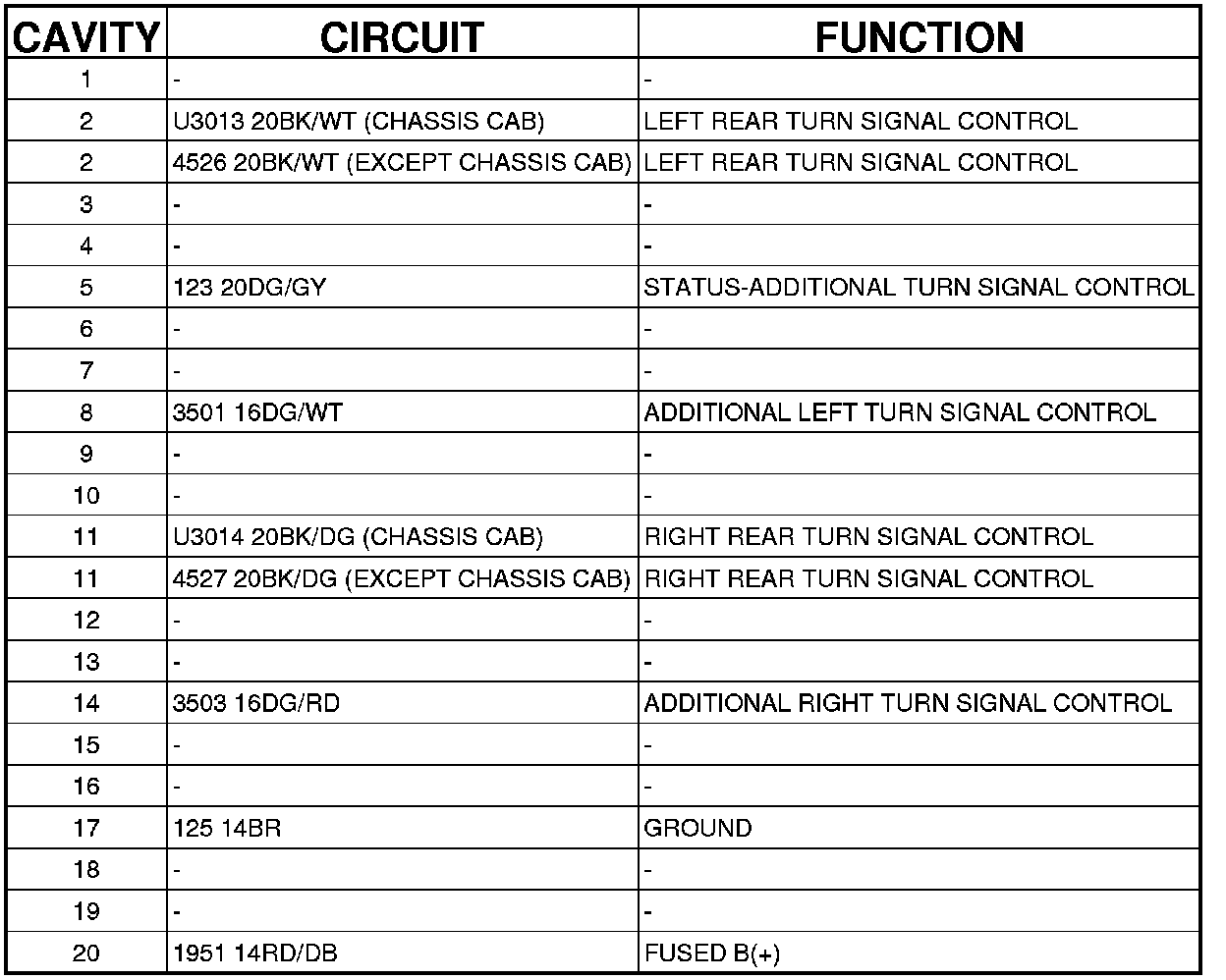

MODULE-ADDITIONAL TURN SIGNAL CONTROL - (HLS) 20 WAY
