Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accessories and Optional Equipment
>>
Towing Module
>>
Trailer Tow Lighting Module C1 (CLS) 4 Way
Trailer Tow Lighting Module C1 (CLS) 4 Way

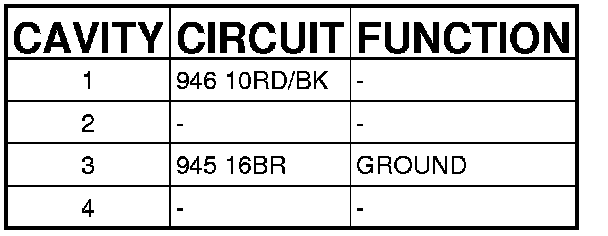

Connector C1 - (CLS) 4 WAY

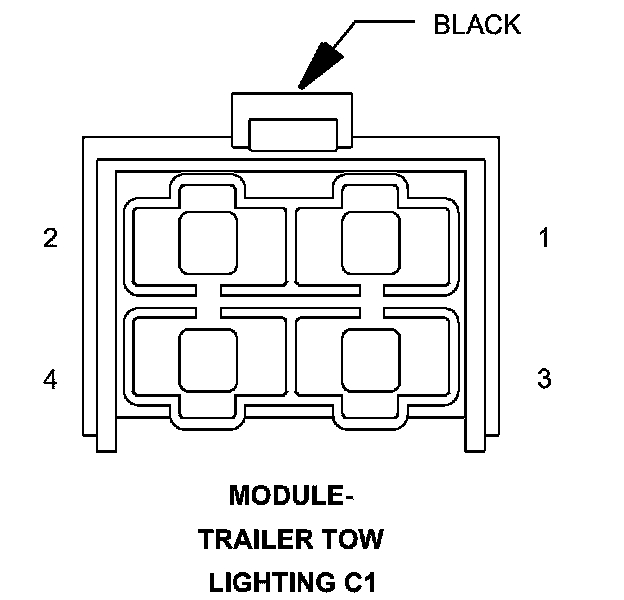

MODULE-TRAILER TOW LIGHTING - (CLS) 4 WAY
