Mass Airflow Sensor (Diesel) (OM642) 5 Way

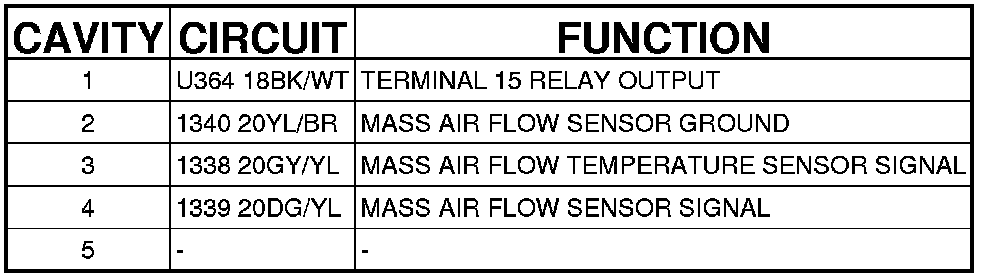

Connector (DIESEL) - (OM642) 5 WAY

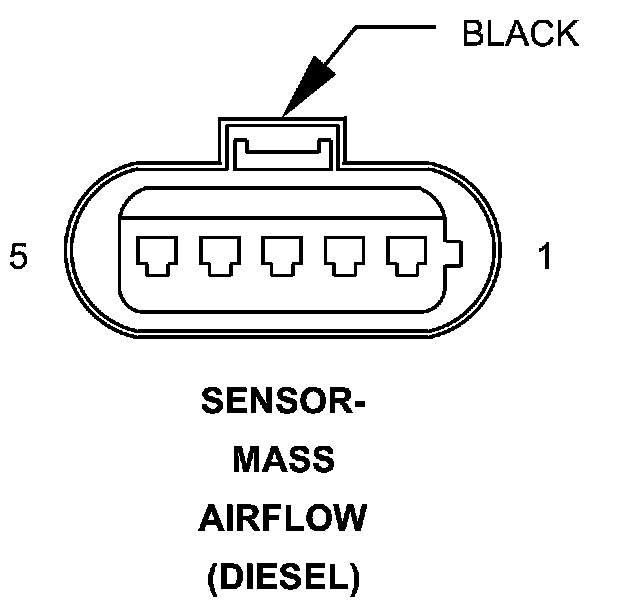

SENSOR-MASS AIRFLOW (DIESEL) - (OM642) 5 WAY
