Auxiliary Heater Module 2 C1 (HLS) 8 Way
Auxiliary Heater Module 2 C1 (HLS) 8 Way

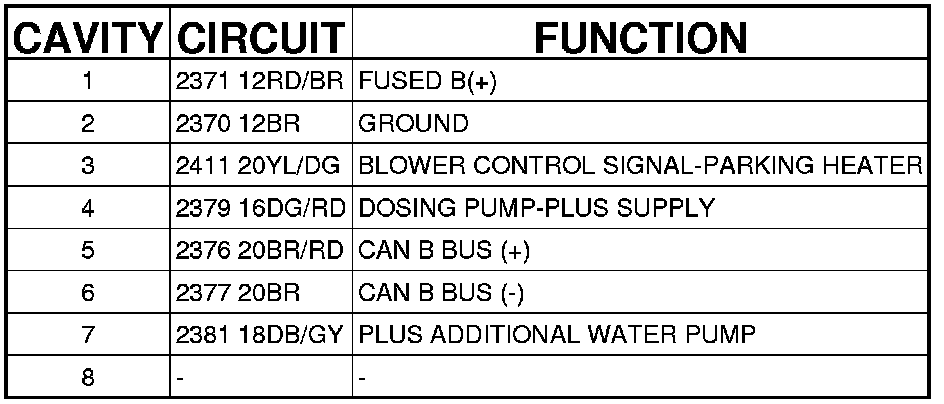

Connector C1 - (HLS) 8 WAY
MODULE-AUXILIARY HEATER 2 - (HLS) 8 WAY
