Home >> Freightliner Truck >> 2009 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C374 (Manual Sliding Doors) (LST Right Side) 4 Way

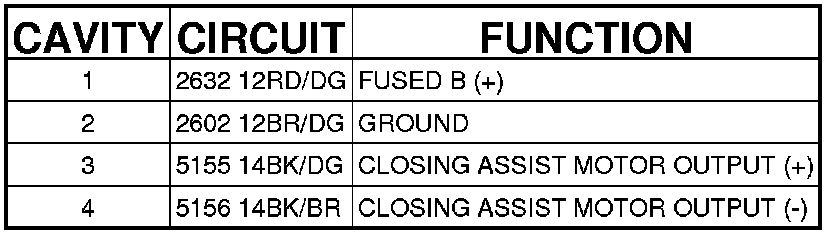

C374 (Manual Sliding Doors) (LST Right Side) 4 Way






Connector (MANUAL SLIDING DOORS) - (LST RE SIDE) 4 WAY




C374 (MANUAL SLIDING DOORS) - (LST RE SIDE) 4 WAY
