Condenser Fan Motor Relay, HVAC
>>
Auxiliary Fan Relay (LU Front Climate) 6 Way
Auxiliary Fan Relay (LU Front Climate) 6 Way

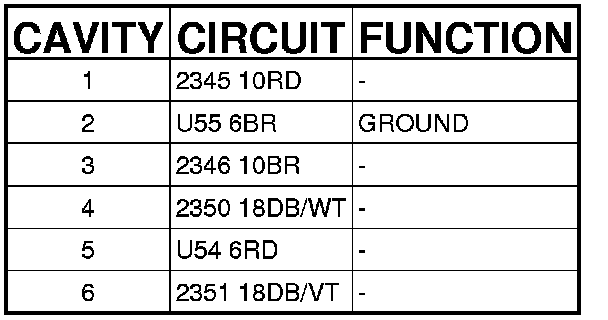

Connector - (LU KLIMA VORN) 6 WAY
RELAY-AUXILIARY FAN - (LU KLIMA VORN) 6 WAY
