Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
A/C-Heater Control C9 (CLS) 10 Way
A/C-Heater Control C9 (CLS) 10 Way

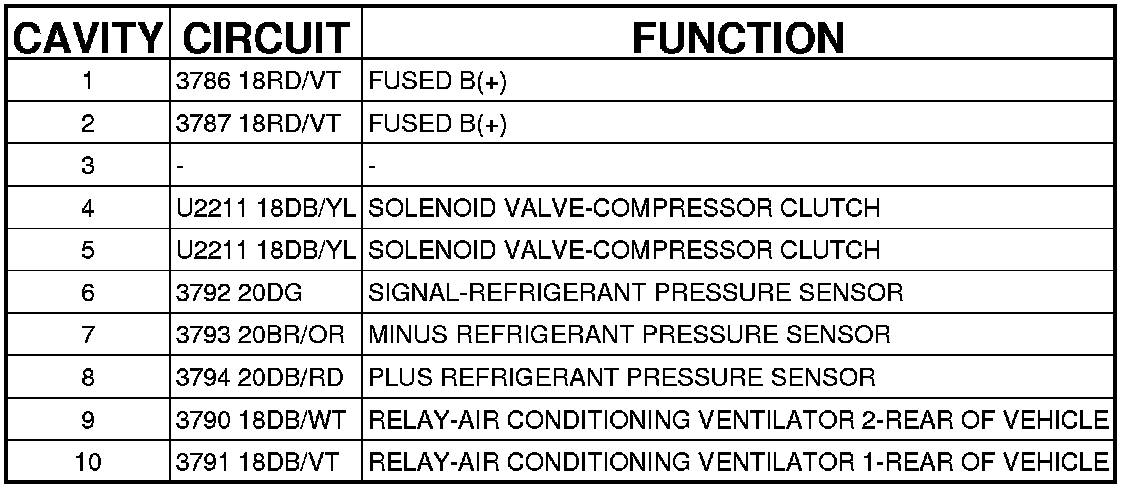

Connector C9 - (CLS) 10 WAY
CONTROL-A/C-HEATER - (CLS) 10 WAY
