Ignition Switch
>>
Ignition Switch C1 (CLS) 5 Way
Ignition Switch C1 (CLS) 5 Way

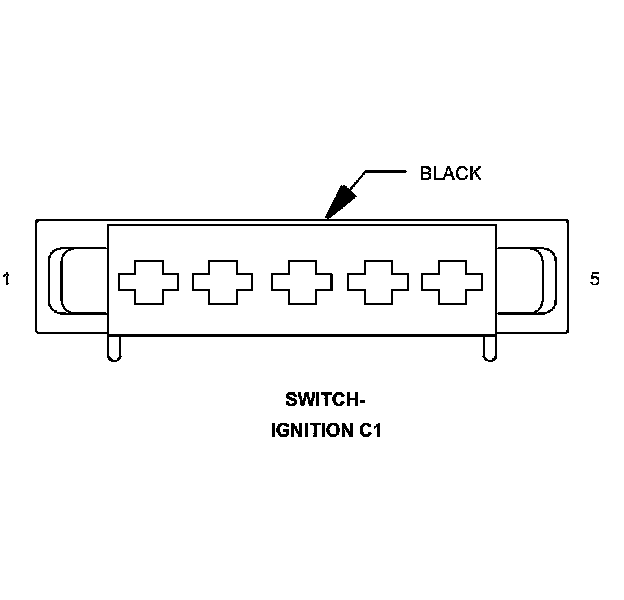

Connector C1 - (CLS) 5 WAY

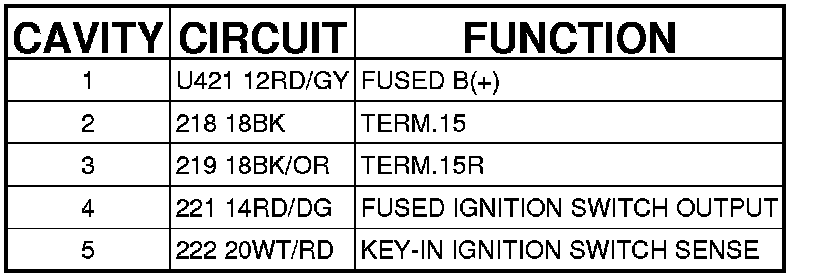

SWITCH-IGNITION - (CLS) 5 WAY
