Ignition Switch
>>
Ignition Switch C3 (CLS) 8 Way
Ignition Switch C3 (CLS) 8 Way

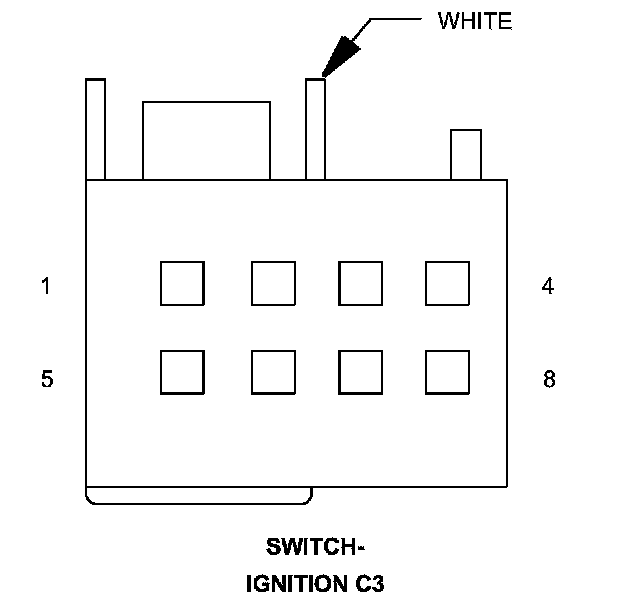

Connector C3 - (CLS) 8 WAY

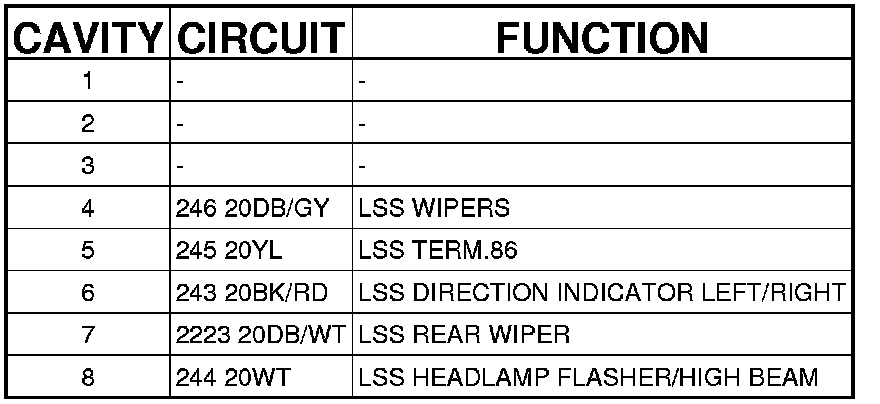

SWITCH-IGNITION - (CLS) 8 WAY
