Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Manifold Pressure/Vacuum Sensor
>>
Sensor-Inlet Air Pressure
Sensor-Inlet Air Pressure

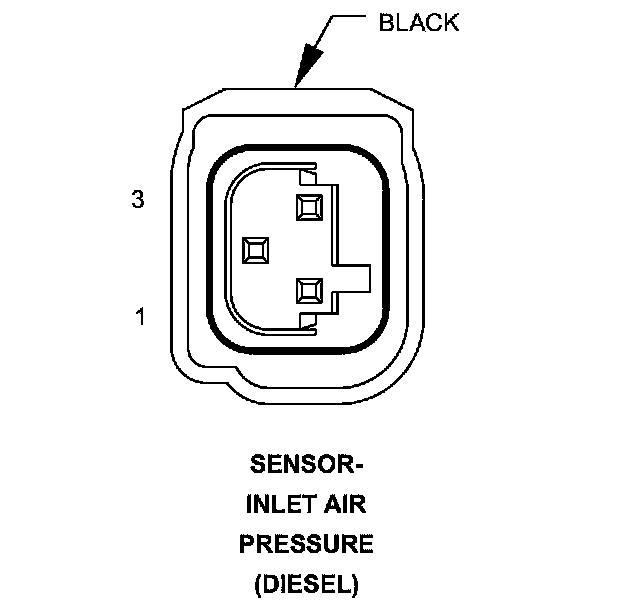

Connector (DIESEL) - (OM642) 2 WAY

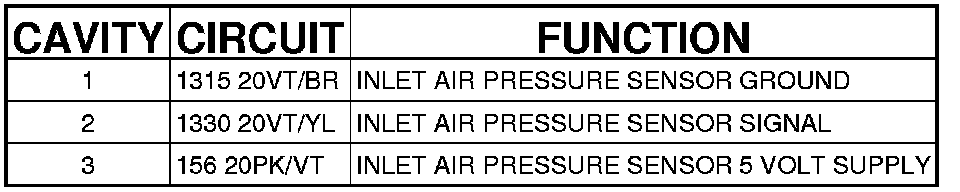

SENSOR-INLET AIR PRESSURE (DIESEL) - (OM642) 2 WAY
