Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Driver Door Latch (FT) 4 Way
Driver Door Latch (FT) 4 Way

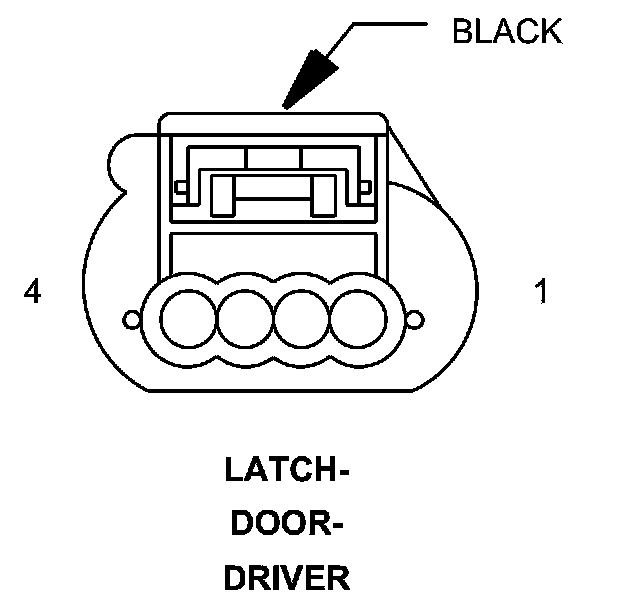

Connector - (FT) 4 WAY

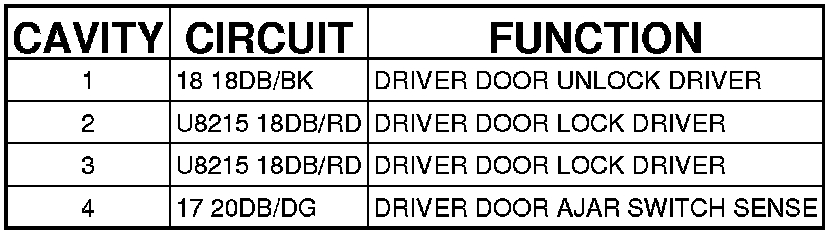

LATCH-DOOR-DRIVER - (FT) 4 WAY
