Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Driver Power Window/Mirror Switch C2 (FT) 6 Way
Driver Power Window/Mirror Switch C2 (FT) 6 Way

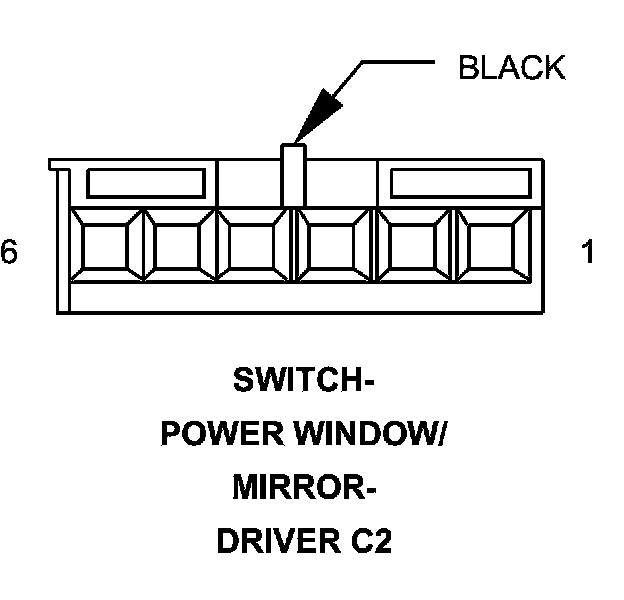

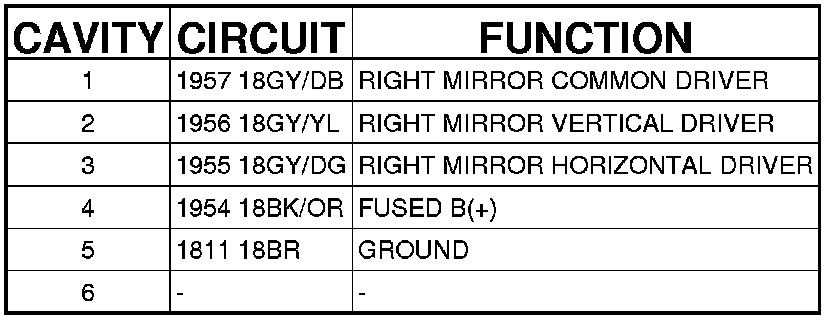

Connector C2 - (FT) 6 WAY
SWITCH-POWER WINDOW/MIRROR-DRIVER - (FT) 6 WAY
