Left Sliding Door Latch C1 (LST Left) 8 Way
Left Sliding Door Latch C1 (LST Left) 8 Way

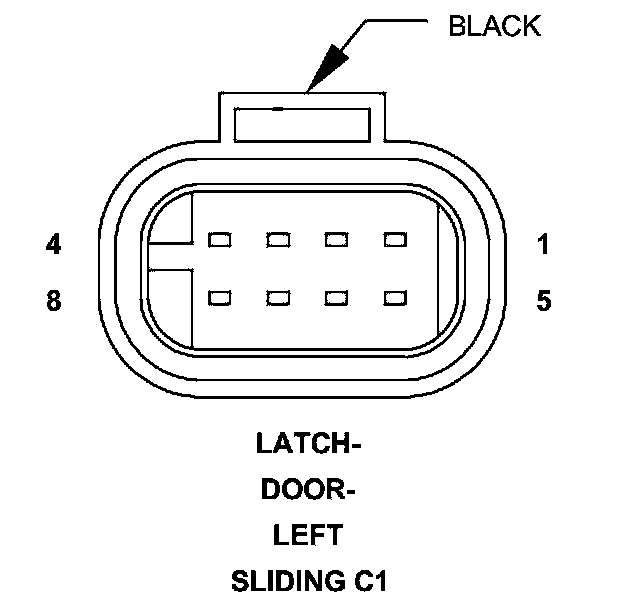

Connector C1 - (LST LI) 8 WAY

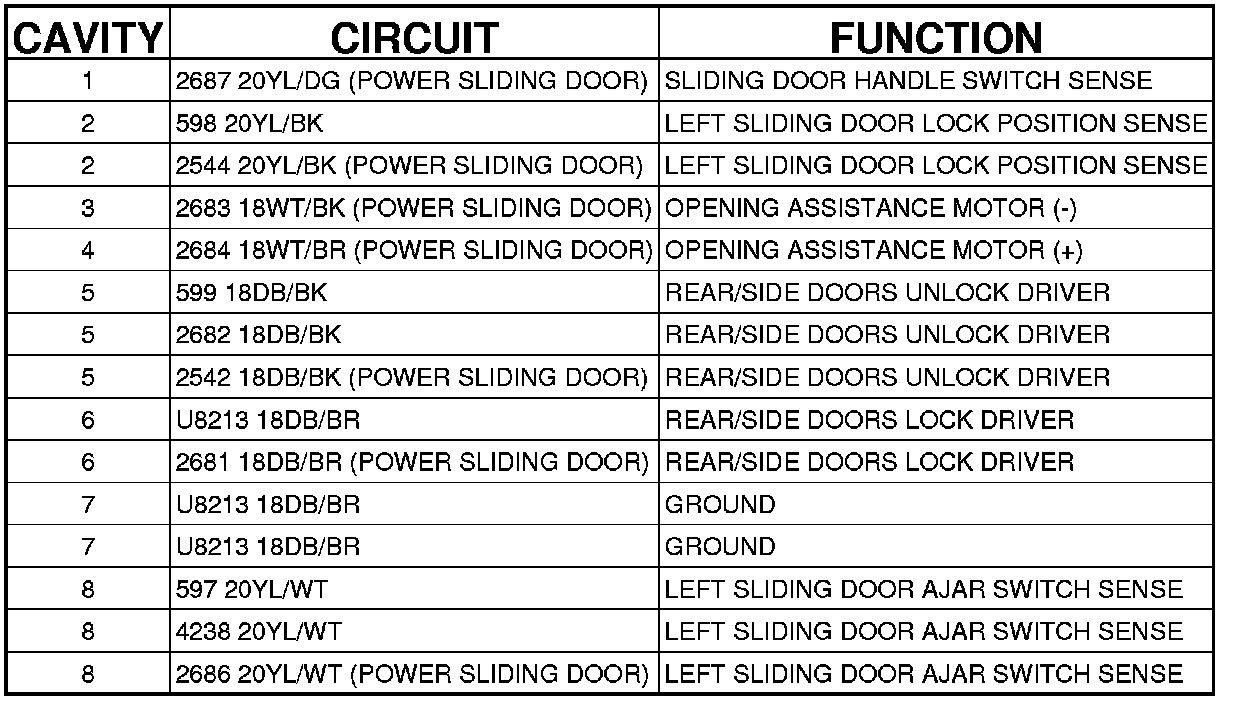

LATCH-DOOR-LEFT SLIDING - (LST LI) 8 WAY
