Left Sliding Door Latch C2 (LST Left) 3 Way
Left Sliding Door Latch C2 (LST Left) 3 Way

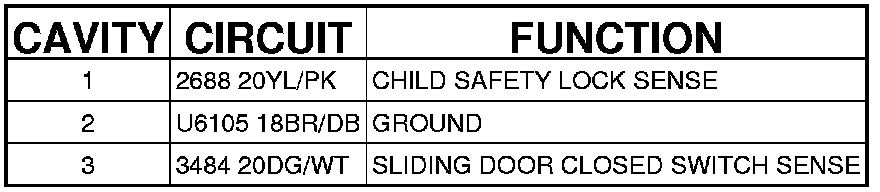

Connector C2 - (LST_LI) 3 WAY
LATCH-DOOR-LEFT SLIDING - (LST_LI) 3 WAY
