Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Solenoid
Variable Induction Control Solenoid

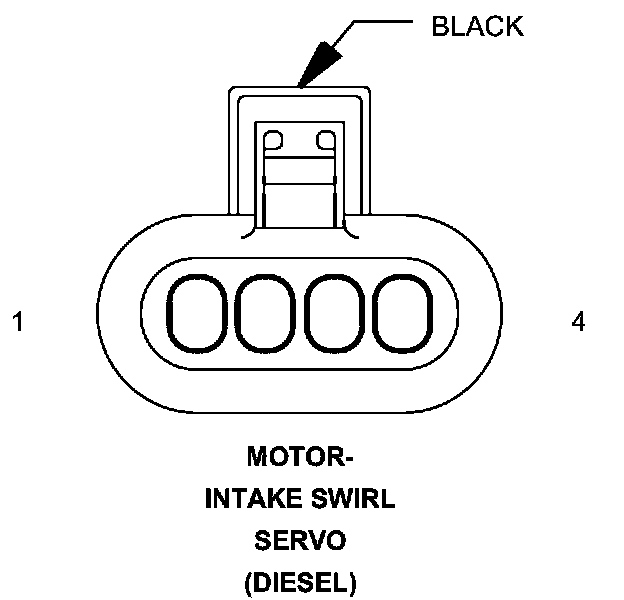

Connector (DIESEL) - (OM642) 4 WAY

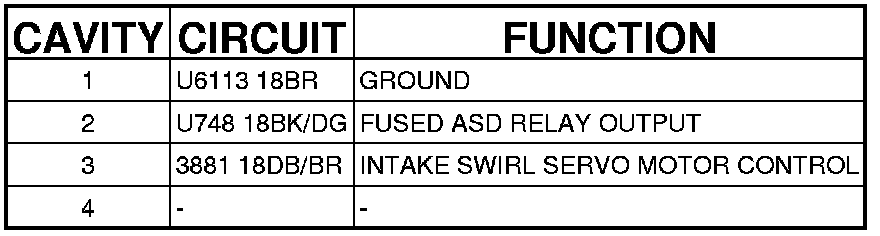

MOTOR-INTAKE SWIRL SERVO (DIESEL) - (OM642) 4 WAY
