Freightliner Truck
>>
2009
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Center Front Identification Lamp (LS) 2 Way
Center Front Identification Lamp (LS) 2 Way

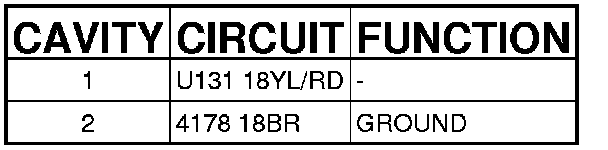

Connector - (LS) 2 WAY

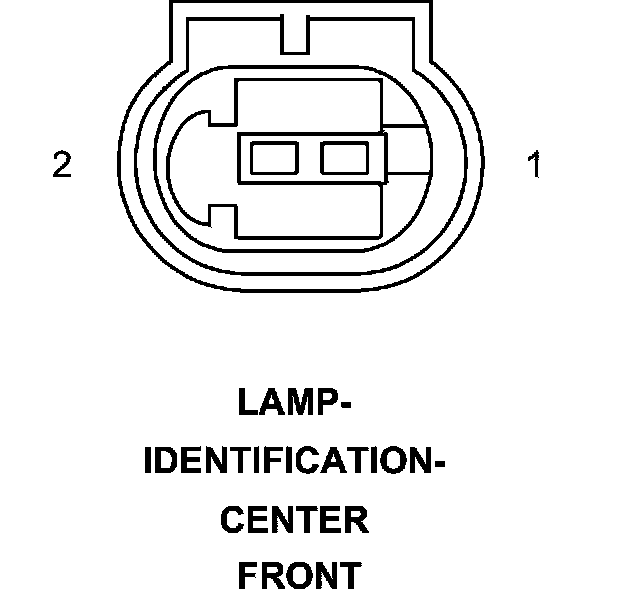

LAMP-IDENTIFICATION-CENTER FRONT - (LS) 2 WAY
