Oxygen Sensor (Diesel) (HLS) 6 Way

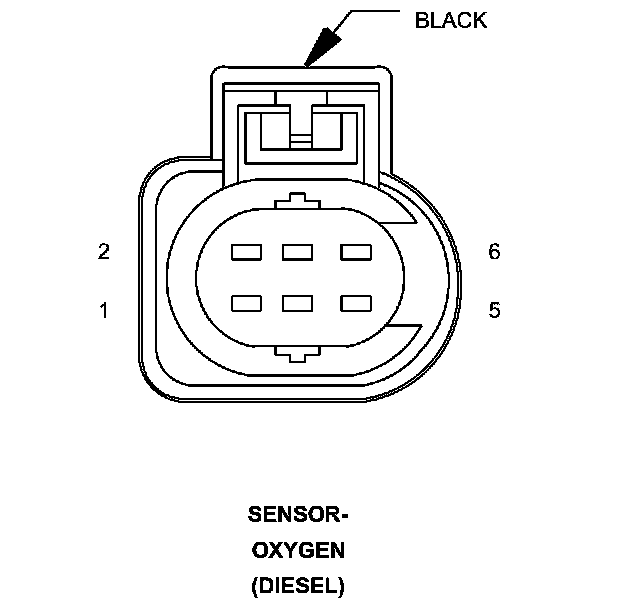

Connector (DIESEL) - (HLS) 6 WAY

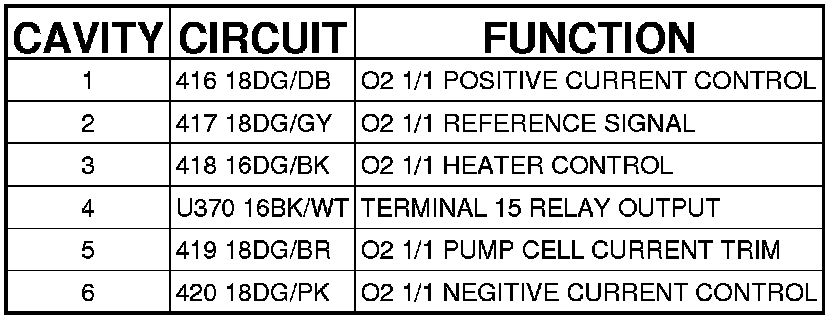

SENSOR-OXYGEN (DIESEL) - (HLS) 6 WAY
