Fuel Pressure Control Solenoid: Diagrams

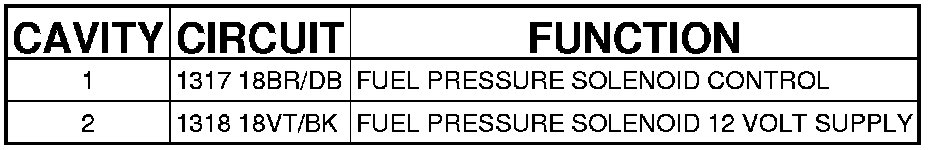

Connector (DIESEL) - (OM642) 2 WAY

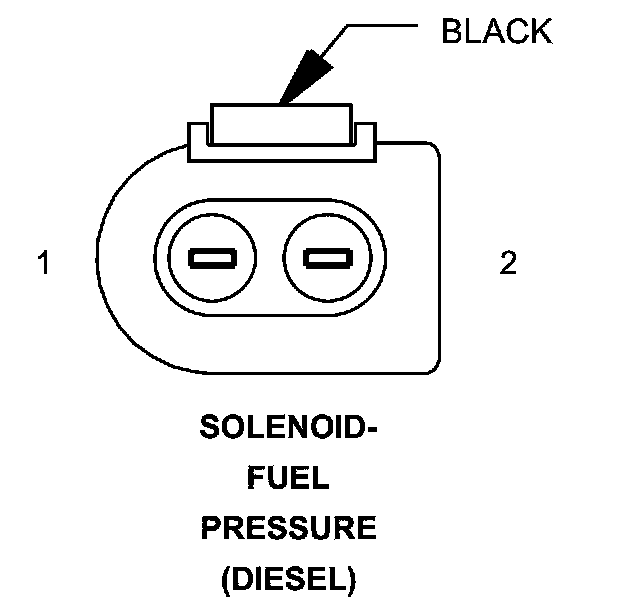

SOLENOID-FUEL PRESSURE (DIESEL) - (OM642) 2 WAY
