Diagnostic Junction Block 25 C3 (CLS) 2 Way
Diagnostic Junction Block 25 C3 (CLS) 2 Way

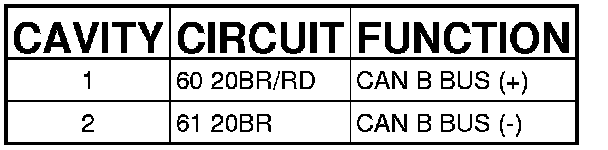

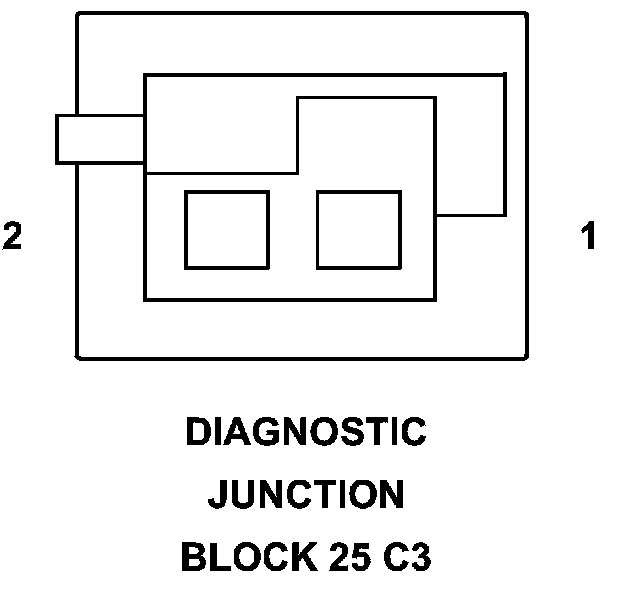

Connector C3 - (CLS) 2 WAY
DIAGNOSTIC JUNCTION BLOCK 25 - (CLS) 2 WAY
