Diagnostic Junction Block 26 C3 (HLS) 2 Way
Diagnostic Junction Block 26 C3 (HLS) 2 Way

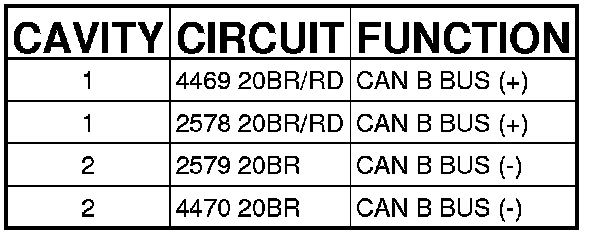

Connector C3 - (HLS) 2 WAY

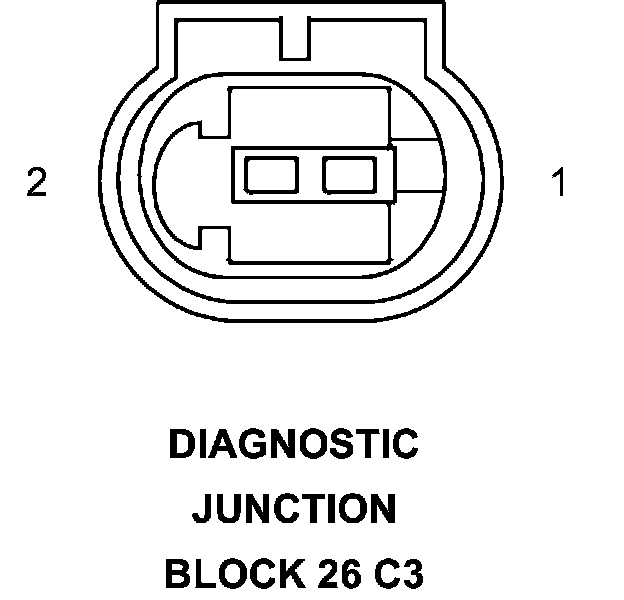

DIAGNOSTIC JUNCTION BLOCK 26 - (HLS) 2 WAY
