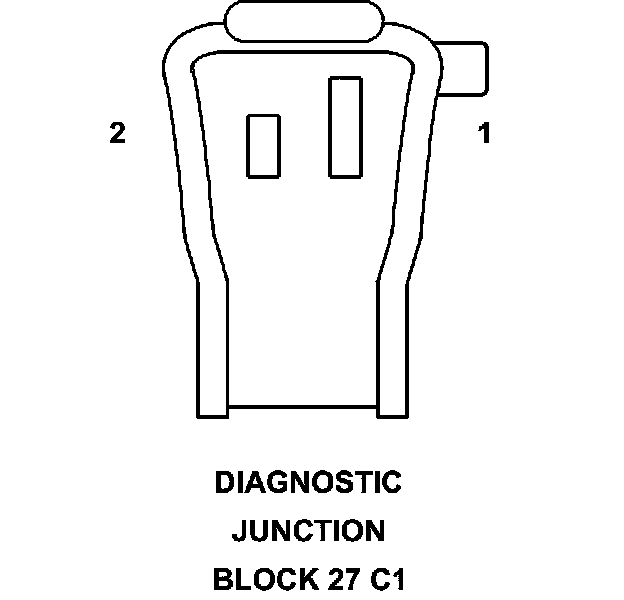

Diagnostic Junction Block 27 C1 (HLS) 2 Way
Diagnostic Junction Block 27 C1 (HLS) 2 Way

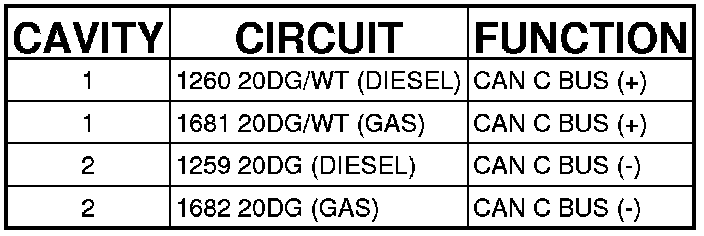

Connector C1 - (HLS) 2 WAY
DIAGNOSTIC JUNCTION BLOCK 27 - (HLS) 2 WAY
