Diagnostic Junction Block 27 C4 (HLS) 2 Way
Diagnostic Junction Block 27 C4 (HLS) 2 Way

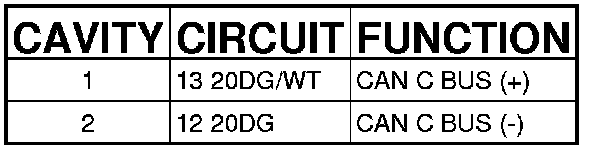

Connector C4 - (HLS) 2 WAY

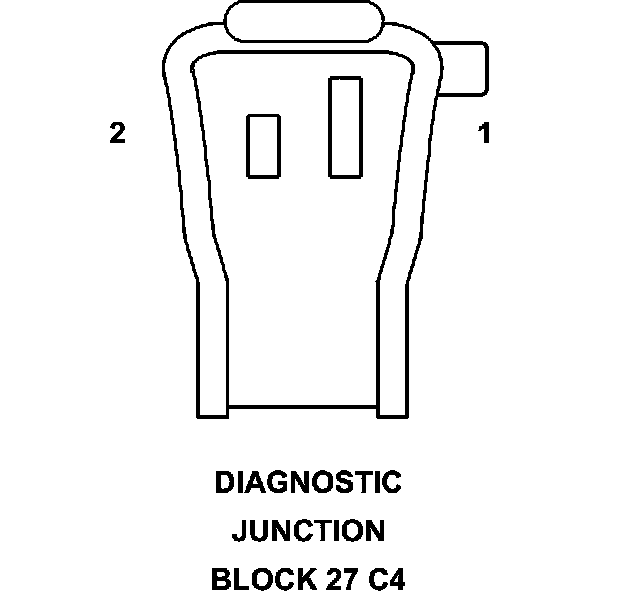

DIAGNOSTIC JUNCTION BLOCK 27 - (HLS) 2 WAY
