Diagnostic Junction Block 27 C6 (CLS) 2 Way
Diagnostic Junction Block 27 C6 (CLS) 2 Way

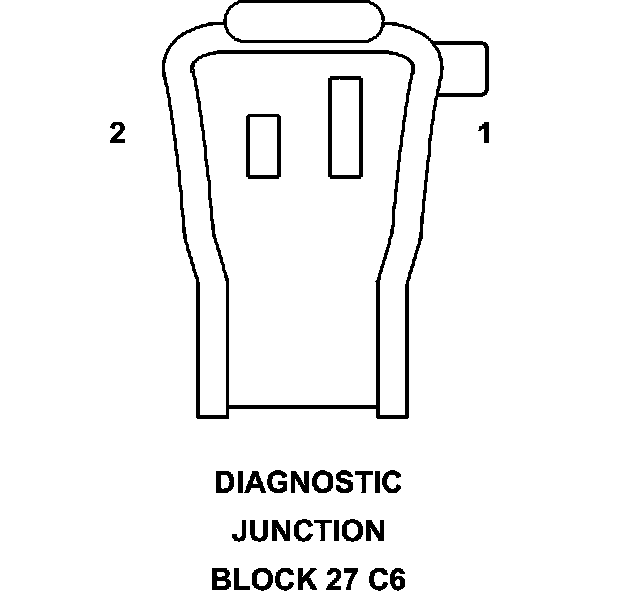

Connector C6 - (CLS) 2 WAY

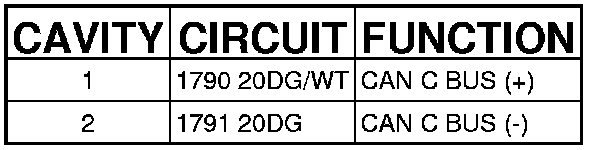

DIAGNOSTIC JUNCTION BLOCK 27 - (CLS) 2 WAY
