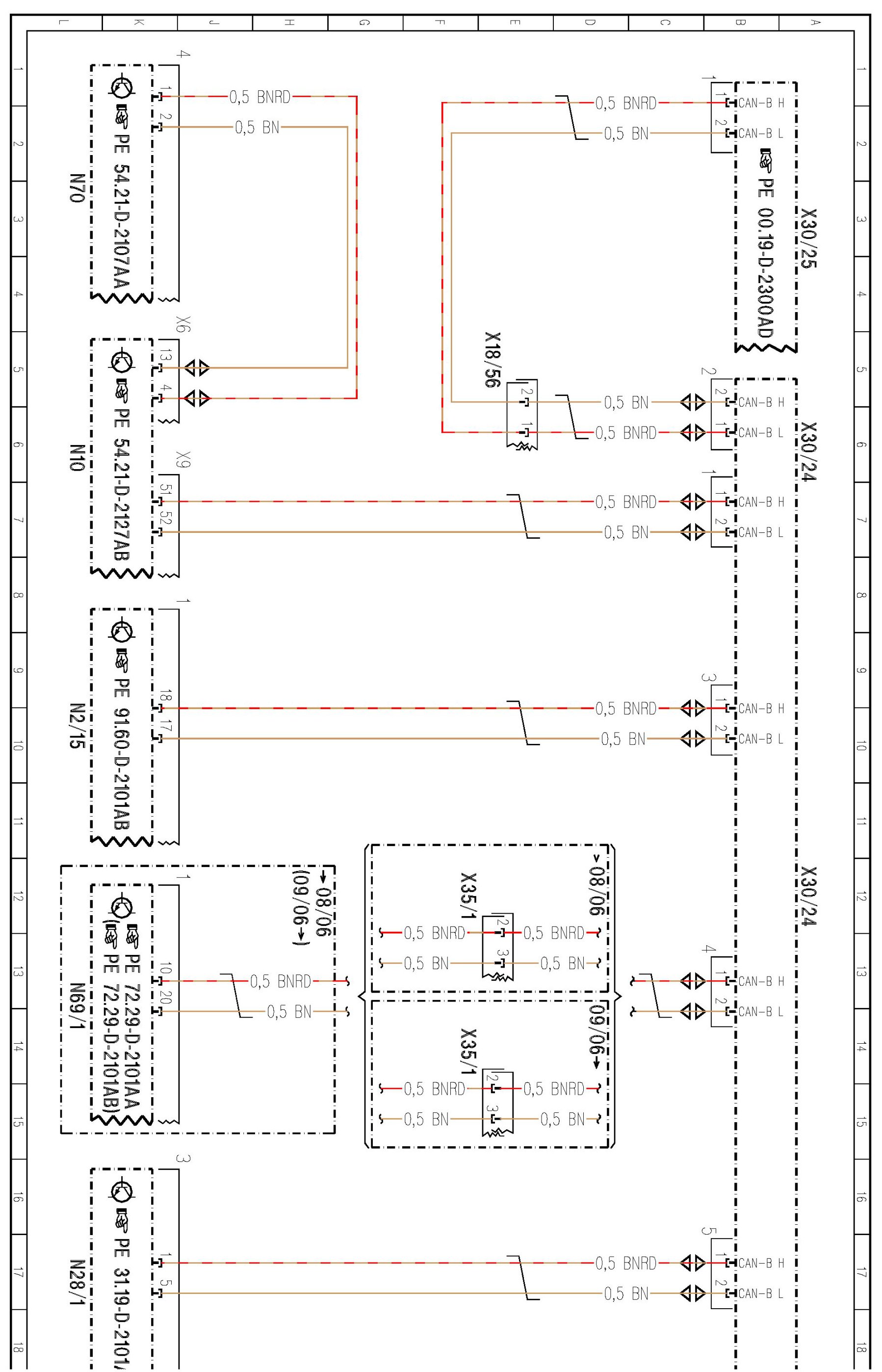

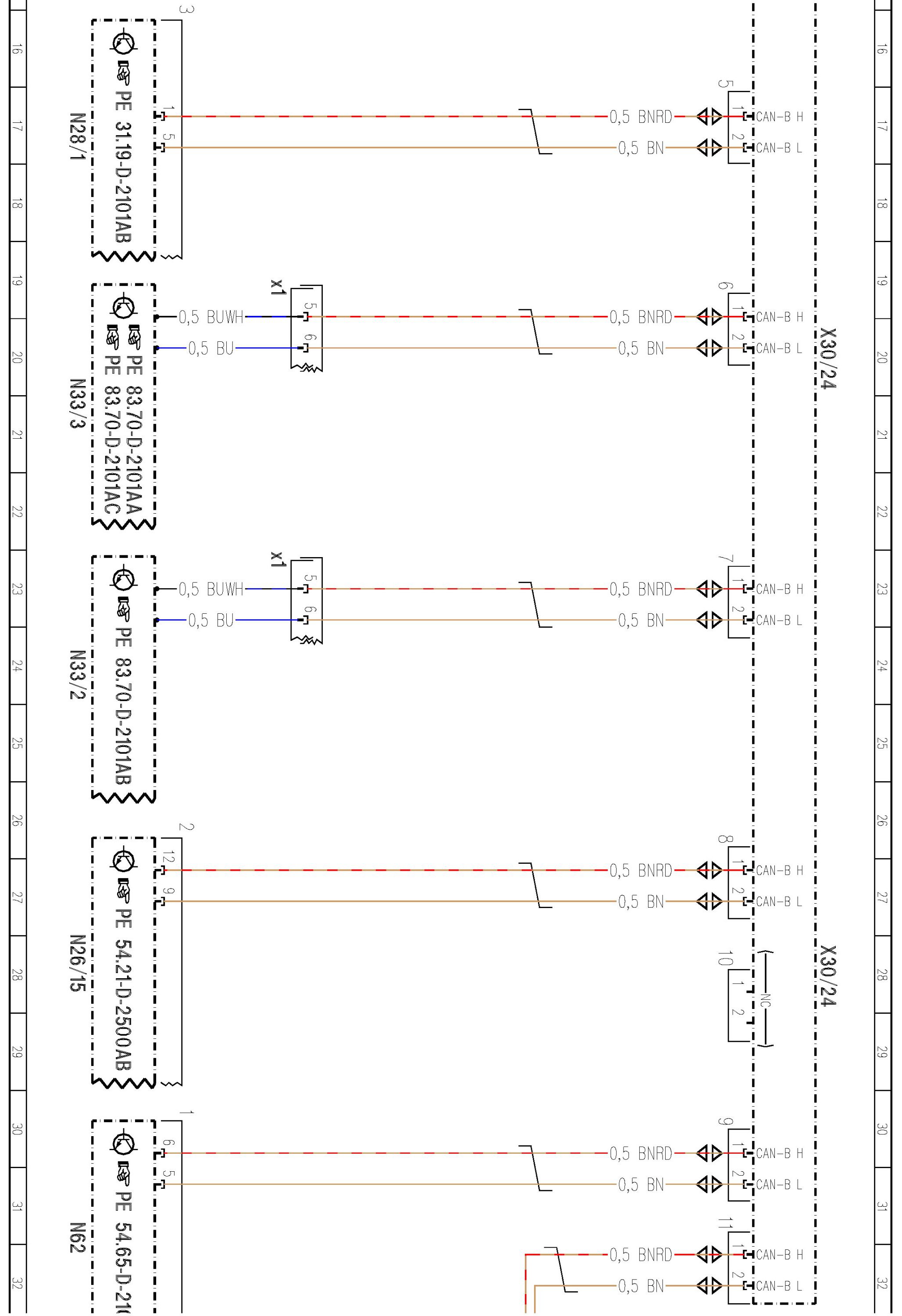

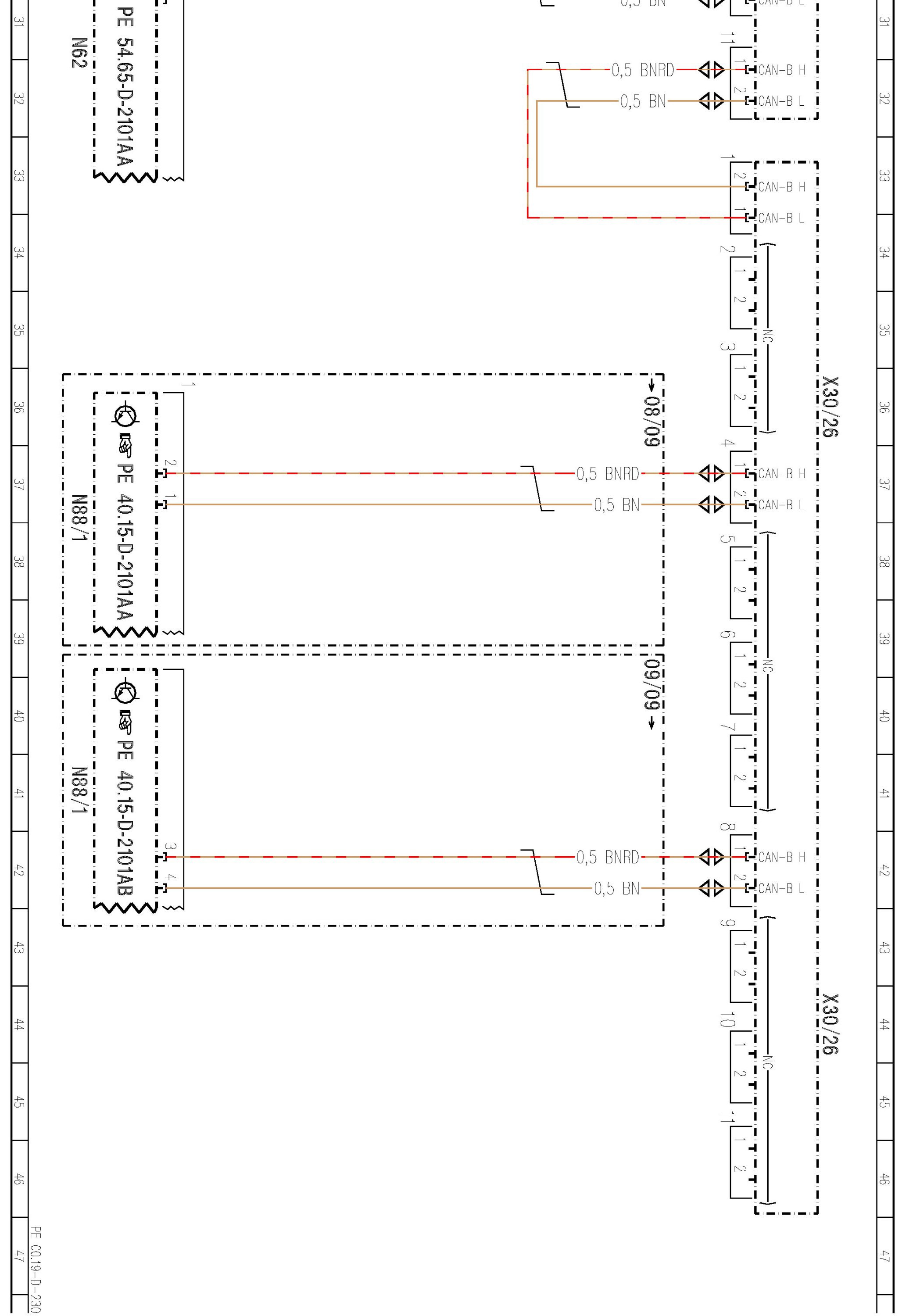

PE00.19-D-2300AC Interior CAN Bus



PE00.19-D-2300AC Interior CAN Bus

906 00 Multi-function Circuits

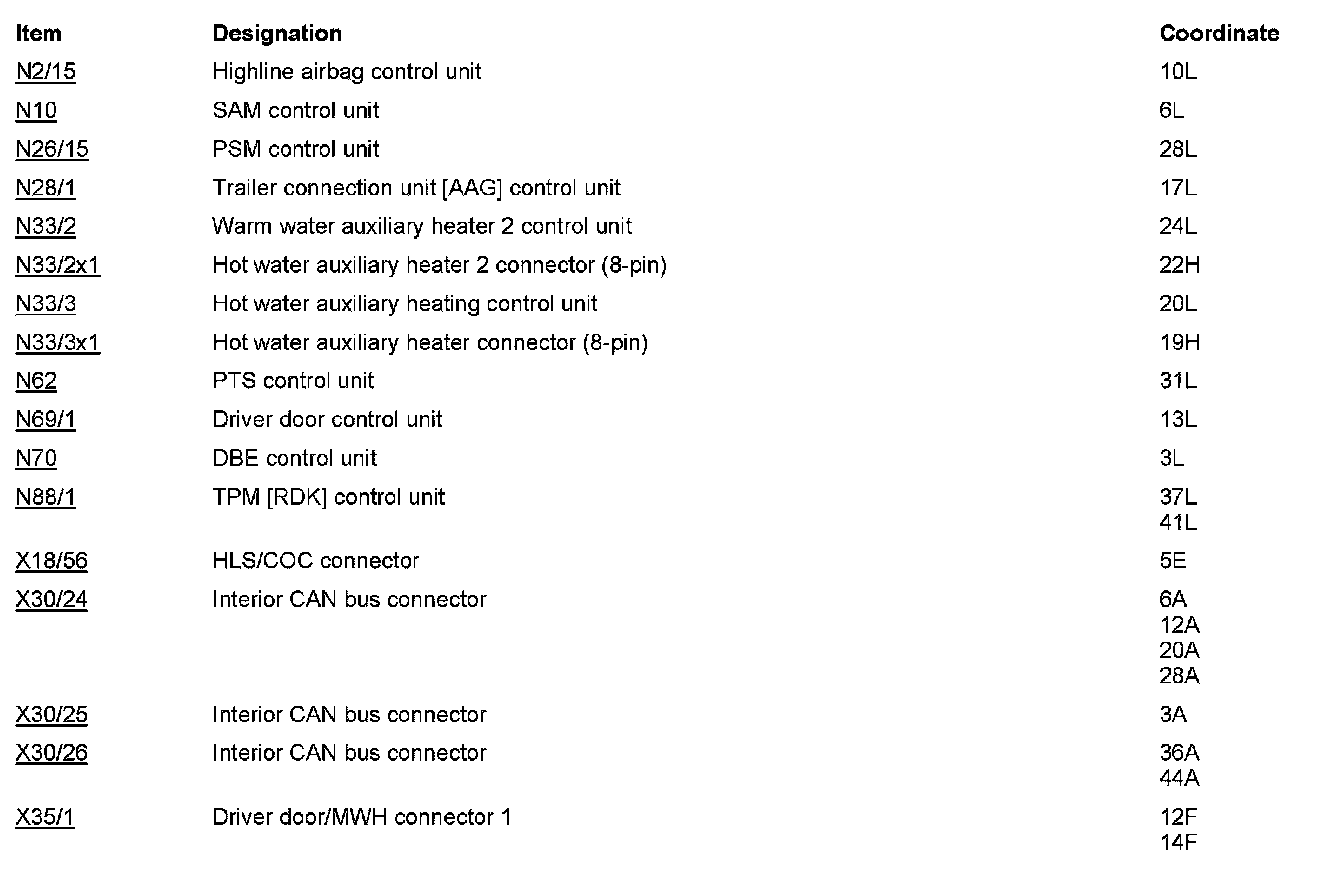

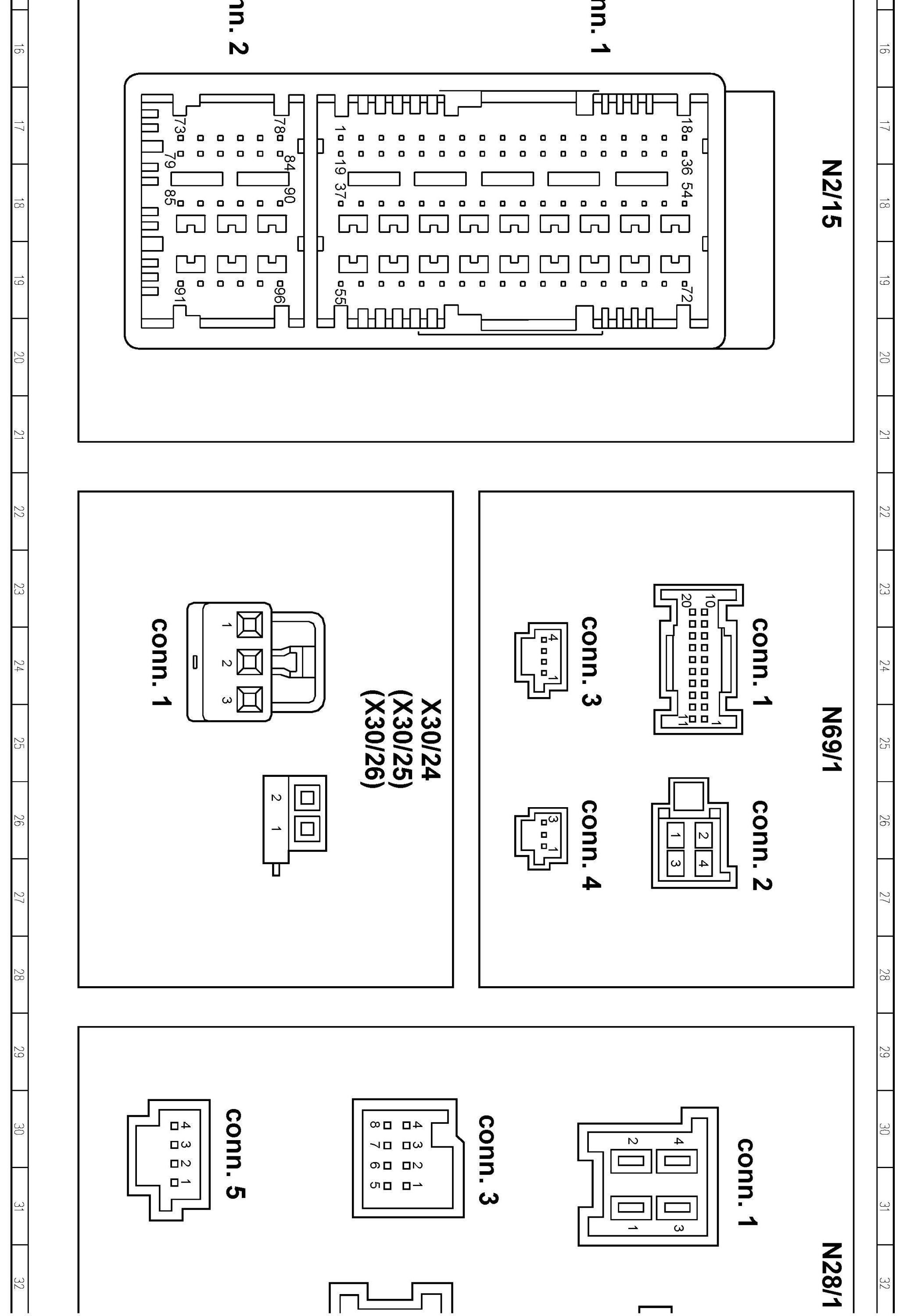

MODEL 906.1 /2 /6 /7 CAN-Stecker X30/24, X30/26
