Antilock Braking System (ABS) - Four Wheel Antilock Brakes (4WAL)

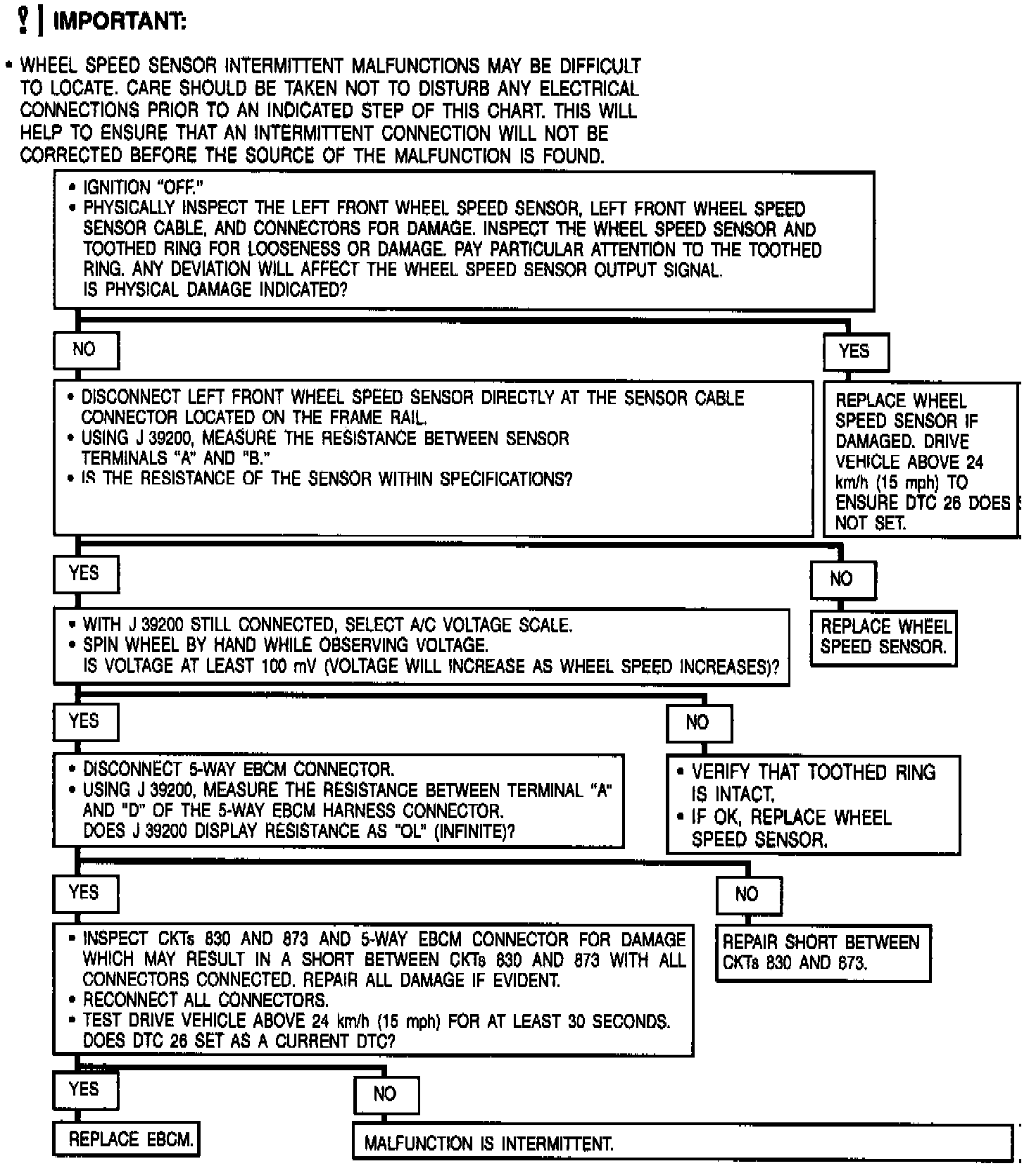

Fig. 198 Code 26: LF Wheel Speed Missing:
