Child Restraints - Revised Top Tether Installation

File In Section: 10 - Body

Bulletin No.: 66-16-07

Date: January, 1997

SERVICE MANUAL UPDATE

Subject:
Section 10-A - Top Tether Anchor

Model:
1996-97 Chevrolet and GMC G Models

�::

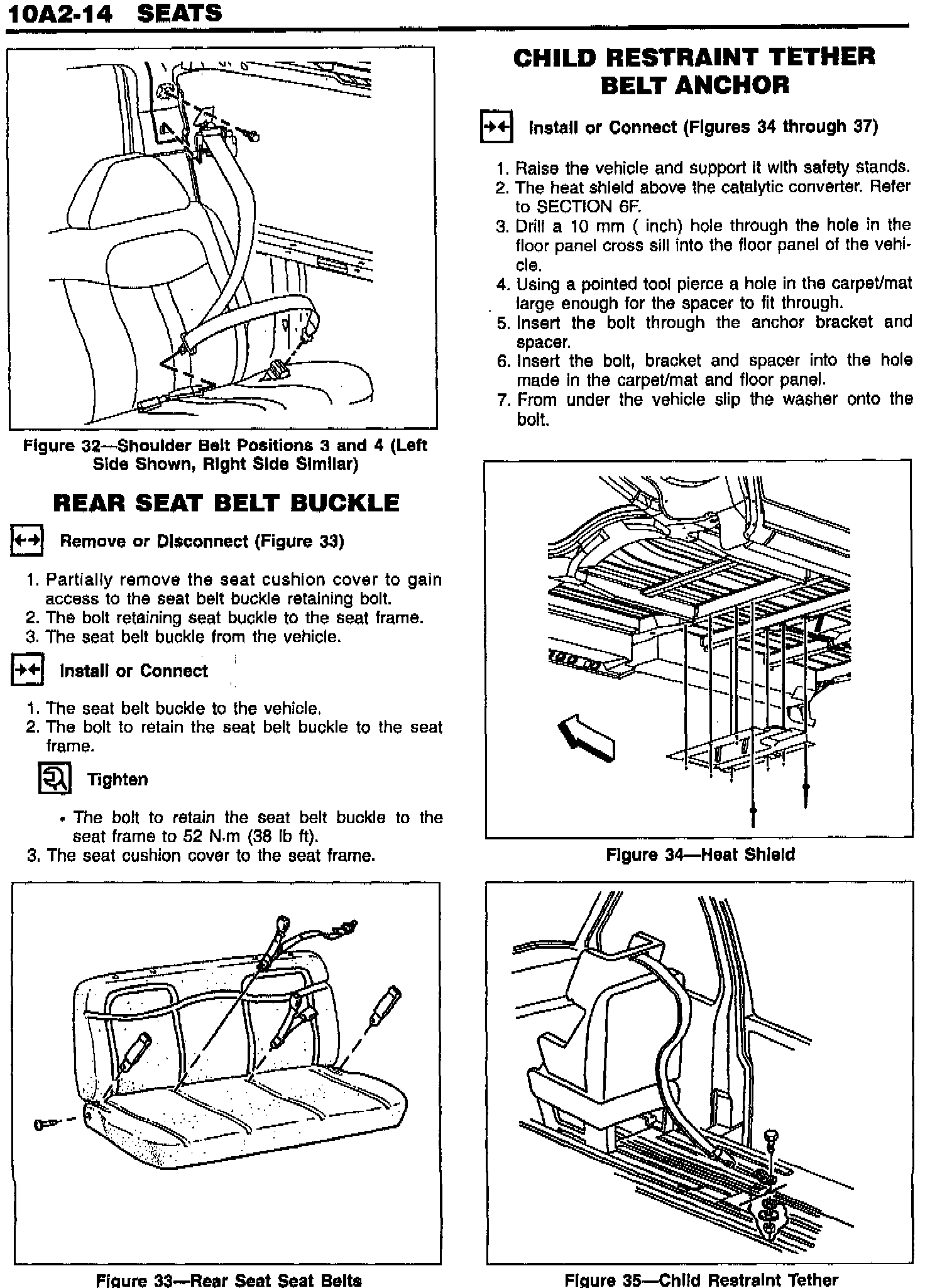

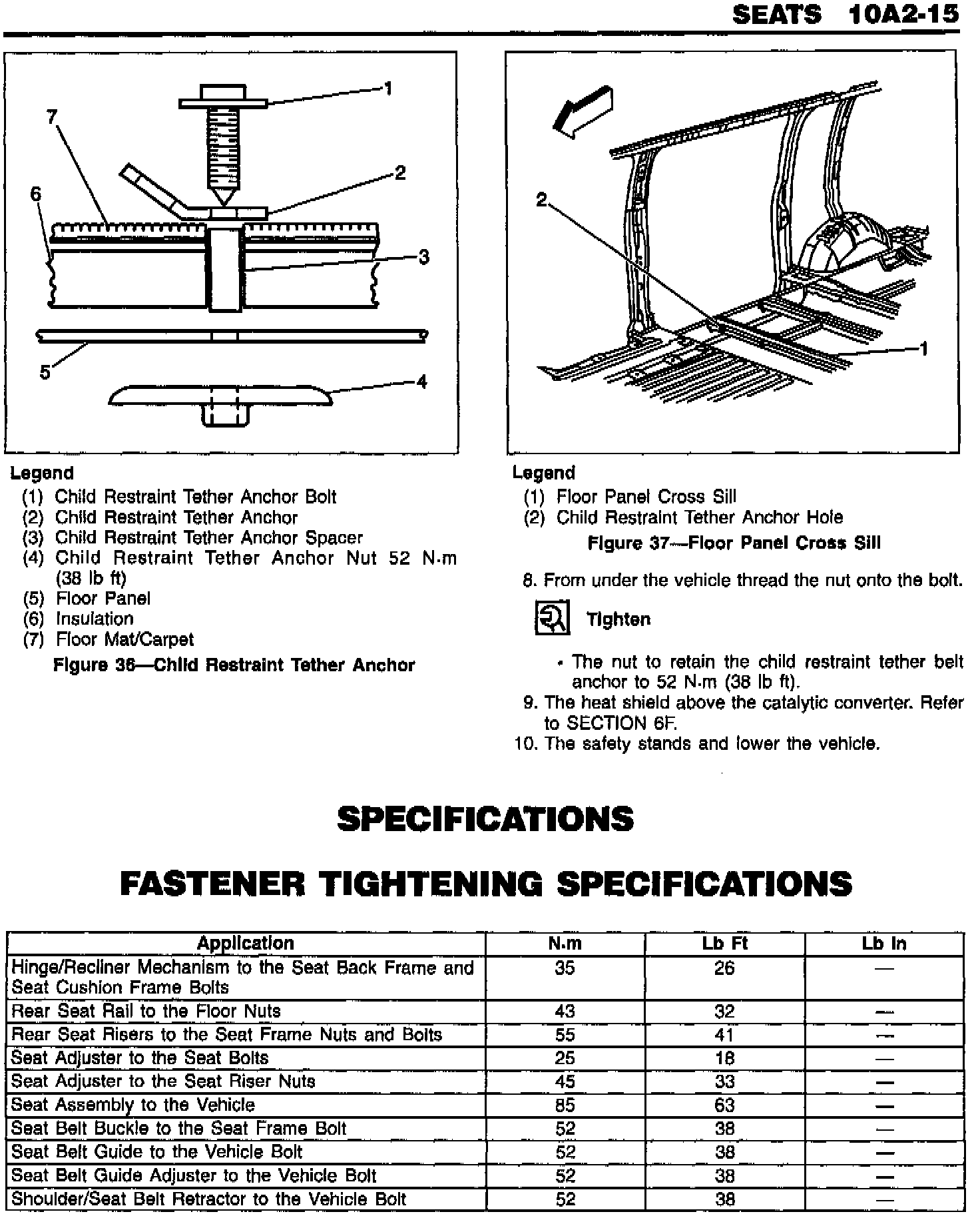

This bulletin revises the top tether installation on Page 10A2-14 in the 1997 G Van Service Manual by including hardware to be used. The same instructions and hardware can also be used for the 1996 G Van. For G Van top tether hardware, use the following components from the C/H car anchor kit 25606689. Install the components as indicated in the Service Manual.
