Service Procedures

1. Raise the vehicle and support with suitable safety stands.

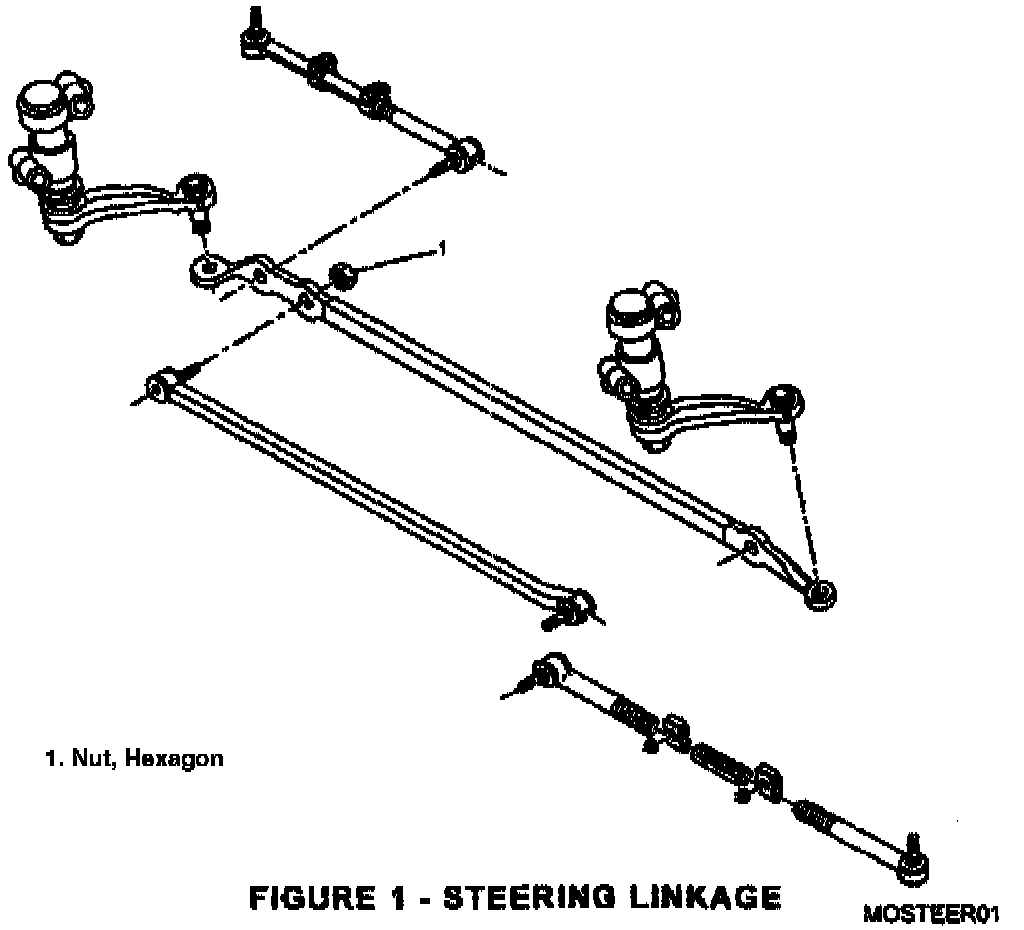

2. Remove the crimped nut that attaches the connecting rod to the relay rod (refer to Figure 1).

3. Install J-29193 tool onto threads. Reseat the taper by torquing J-29193 tool to 54 Nm (40 Lb. Ft.).

4. Install torque prevailing nut. Torque nut to 47 Nm (35 Lb. Ft.).

5. Remove safety stands and lower vehicle.

6. Install the GM Campaign Identification Label.
