P1125

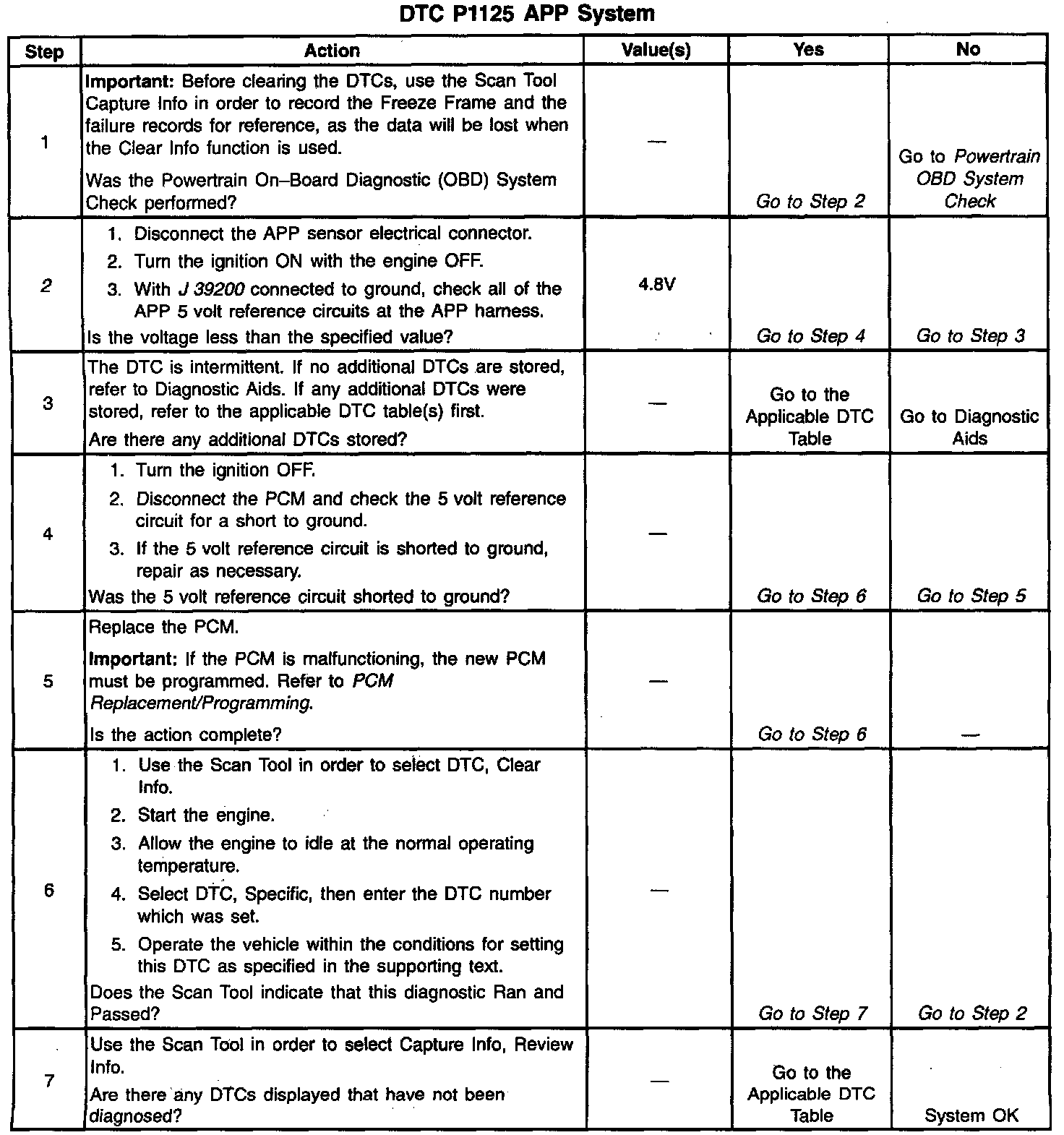

Diagnostic Chart:

Wiring Diagram:

Circuit Description
The Accelerator Pedal Position (APP) module provides a voltage signal that changes relative to the accelerator pedal position. There are three sensors which are located within the APP module that are scaled differently. This is a type D DTC.

Conditions for Setting the DTC
The PCM has recognized an intermittent APP fault and there are no other current APP faults stored.

Action Taken When the DTC Sets
The vehicle will operate at limited power.

Conditions for Clearing the MIL/DTC

^ A History DTC will clear after forty consecutive warm-up cycles during which the diagnostic does not fail (the coolant temperature has risen 5°C (40°F) from the start up coolant temperature and the engine coolant temperature exceeds 71°C (160°F) during that same ignition cycle).
^ Use of a Scan tool will clear the DTC codes.

Diagnostic Aids
There are no driveability issues associated with the APP module unless a DTC is present. The most likely cause of this DTC are poor connections or the sensor itself. The least likely is a PCM problem. A DTC P1125 will set along with multiple APP DTCs. All other DTCs should be diagnosed first.

Test Description
The number(s) below refer to the Step number(s) on the Diagnostic Table.

2. This Step determines if DTC P1125 is a hard failure or an intermittent condition.
