Interior Lights - Revised Schematics
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 66-81-12
Date: November, 1996
SERVICE MANUAL UPDATE
Subject:

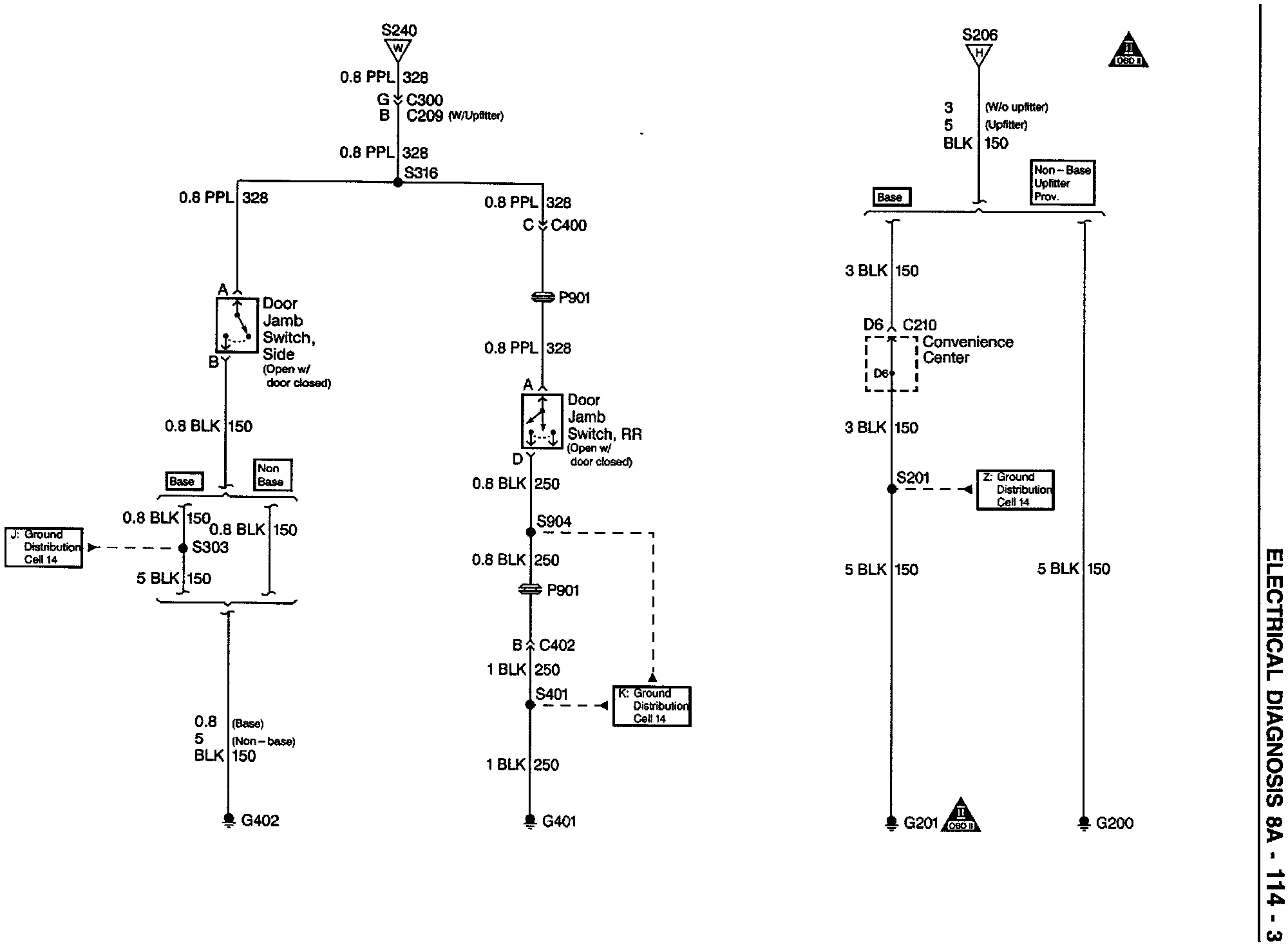

Section 8A-114, Interior Lights - Revised Schematics
Models:
1996 Chevrolet and GMC G Models
This bulletin revises schematics on pages 8A-114-2, 8A-114-3 and adds to the 8A-114 Component Locator Table in the 1996 Savana Express/Van Service Manual.
