P0563

DTC P0563

Circuit Description
The engine control module (ECM) monitors the system voltage on the ignition feed terminal to make sure that the voltage stays within the proper range. If the ECM detects an excessively high system voltage, this DTC will set.

Condition for Running the DTC
- The battery voltage is between 10-16 volts.
- The ignition switch is ON.

Condition for Setting the DTC
- The ECM detects that the ignition 1 feed circuit voltage is more than 16.5 volts.

Action Taken When the DTC Sets
- The ECM illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Failure Records.

Condition for Clearing the DTC
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- Clear the MIL and the DTC with a scan tool.

Diagnostic Aids
- A charging system problem may set this DTC.
- Jump starting the vehicle or a battery charger may have set this DTC.

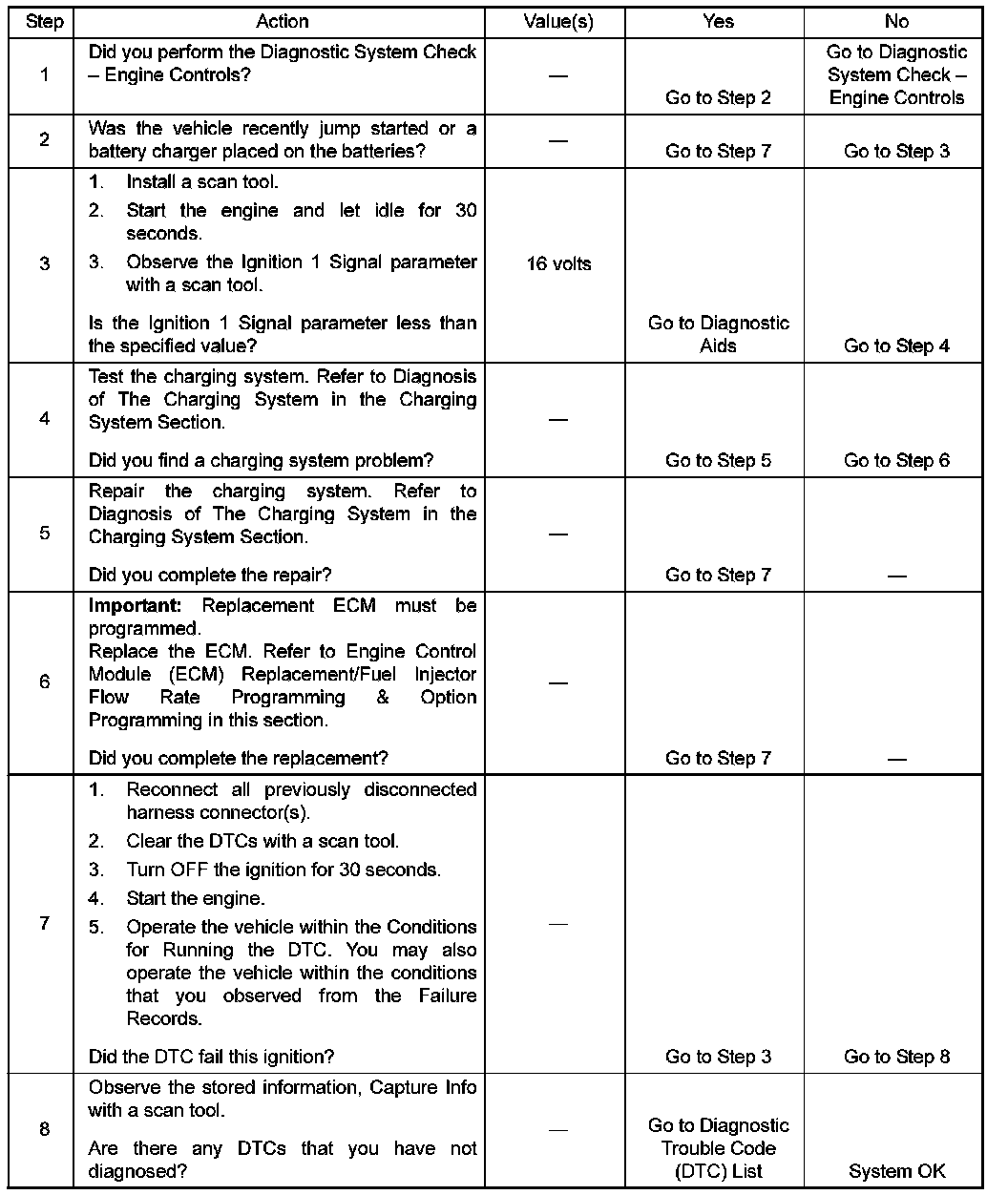

DTC P0563

Schematic Reference:
Engine Controls Schematics
Starting and Charging Schematics
