P2293

DTC P2293

Description
The common rail fuel system is comprised of two fuel pressure sections: a suction side between the fuel tank and the fuel supply pump and a high-pressure side between the fuel supply pump and the fuel injectors. Fuel is drawn from the fuel tank via a feed pump and then pumped into the fuel rail by two plungers, all of which are internal to the fuel supply pump. This high pressure is regulated by the engine control module (ECM) using the suction control valve (SCV) dependant upon values from the fuel rail pressure (FRP) sensor attached to the fuel rail. In case of fuel rail overpressure, a pressure limiter valve threaded into the fuel rail will open to release overpressure and return fuel back to the fuel tank.

If the ECM detects that the fuel pressure went high for a lengthy period of time this DTC will set.

Condition for Running the DTC
- The battery voltage is between 10-16 volts.
- The ignition switch is ON.
- The engine speed is higher than 800 RPM.

Condition for Setting the DTC
- Fuel rail pressure is more than 33350 psi (230 MPa) for 1 second.

Action Taken When the DTC Sets
- The ECM illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Failure Records.
- The ECM limits injection quantity within 50%.
- The ECM limits fuel rail pressure within 11600 psi (80 MPa).
- The ECM closes the EGR valve and holds to close position.
- The ECM inhibits cruise control.
- The ECM inhibits PTO control.

Condition for Clearing the DTC
- A current DTC clears when the ignition is turned OFF.
- Clear the MIL and the DTC with a scan tool.

Diagnostic Aids
- A sticking suction control valve (SCV) may have allowed the fuel pressure to become high enough to set this DTC.
- Normal Actual Fuel Rail Pressure readings on the scan with the engine running in Park or Neutral at idle are around 3650 to 5050 psi (25 to 35 MPa) and around 14500 to 21750 psi (100 to 150 MPa) in Park or Neutral at W.O.T. (accelerator pedal full travel).
- A skewed fuel rail pressure (FRP) sensor value (shifted to a higher pressure) can set this DTC. The Actual Fuel Rail Pressure on the scan tool should read 0 psi (0 MPa) with the key ON and engine OFF after the engine has stopped running for a minimum of 2 minutes.
- Resistance in the FRP sensor low reference circuit can set this DTC. Ensure that the sensor low reference circuit has no resistance and the connectors are tight and free of corrosion.

NOTE: The Actual Fuel Rail Pressure on scan tool will only update with the engine running or one time after the key is cycled when the ignition has been turned OFF for longer than 10 seconds.

Test Description
The numbers below refer to the step number on the diagnostic table.
6. This step checks for a fuel restriction by determining if a high vacuum is being pulled on the fuel system during normal operation.
7. This step checks for an air leak on the suction side of the fuel system by determining if a vacuum can be pulled when a fuel line is plugged.
17. This DTC indicates that the fuel pressure went high and it s possible that the pressure limiter valve did not active.

DTC P2293

Schematic Reference: Engine Controls Schematics

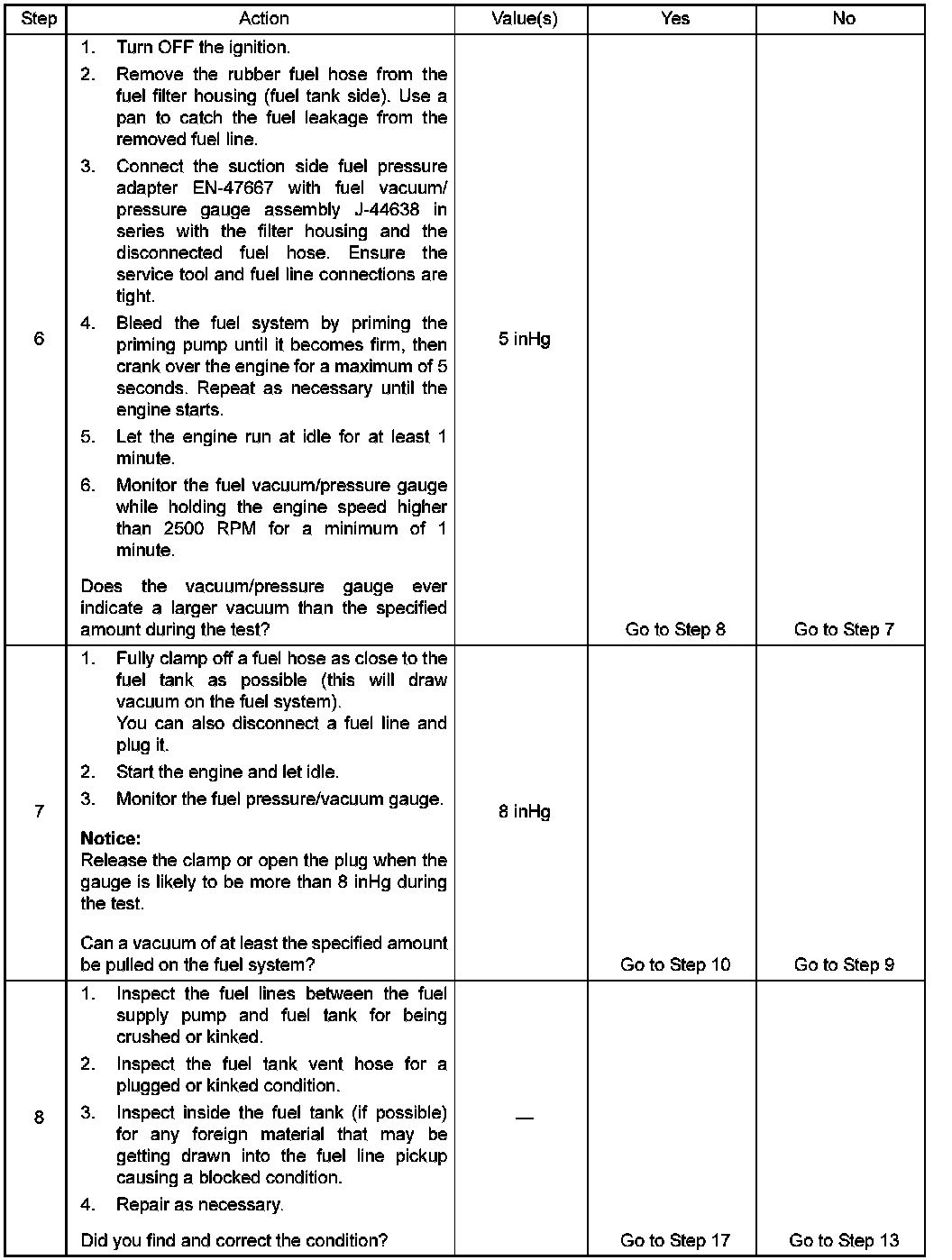

Step 6 - 8:

Step 9 - 11:

Step 12 - 19:
