Rear Seat Armrest Replacement (60/40 Split)

Rear Seat Armrest Replacement (60/40 Split)

Removal Procedure

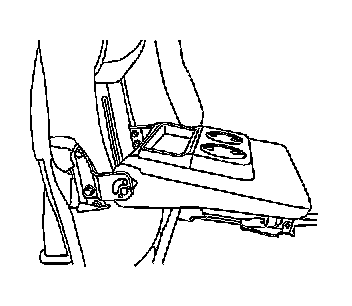

1. Remove the cover to gain access to the center armrest bolts, if equipped.
2. Remove the bolts that retain the center armrest to the seat frame.
3. Remove the center arm rest from the vehicle.



Installation Procedure





1. Install the center armrest to the seat frame.
Notice: Refer to Fastener Notice .


2. Install the bolts to the center armrest.

Tighten the bolt to 9 N.m (80 lb in).

3. Install the cover to the center armrest, if removed.
