Home >> GMC Truck >> 2007 >> Sierra Denali Classic AWD V8-6.0L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams

Tail Lamp: Diagrams

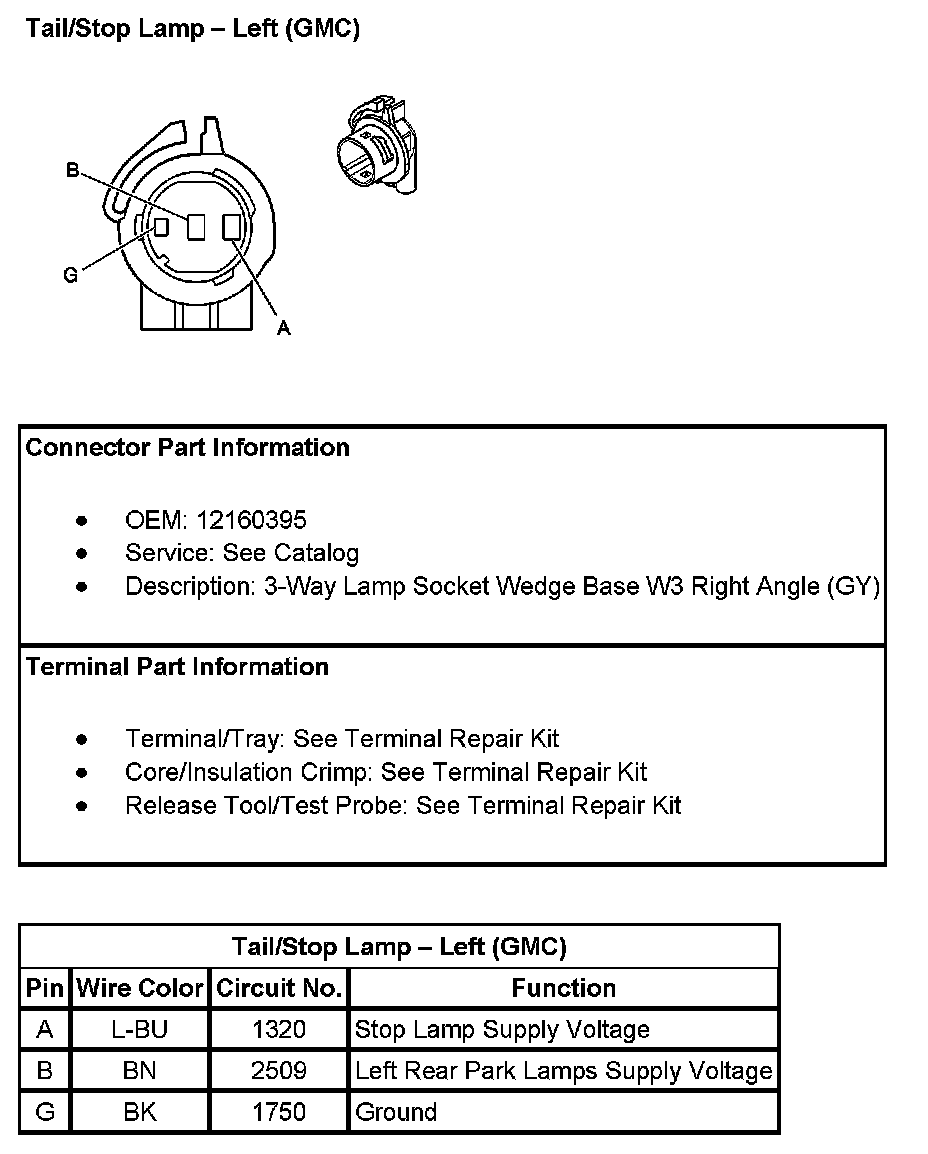

Tail/Stop Lamp - Left (GMC):



Tail/Stop Lamp - Right (GMC):
