Home >> GMC Truck >> 2010 >> Terrain AWD V6-3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Pump >> Diagrams

Windshield Washer Pump: Diagrams

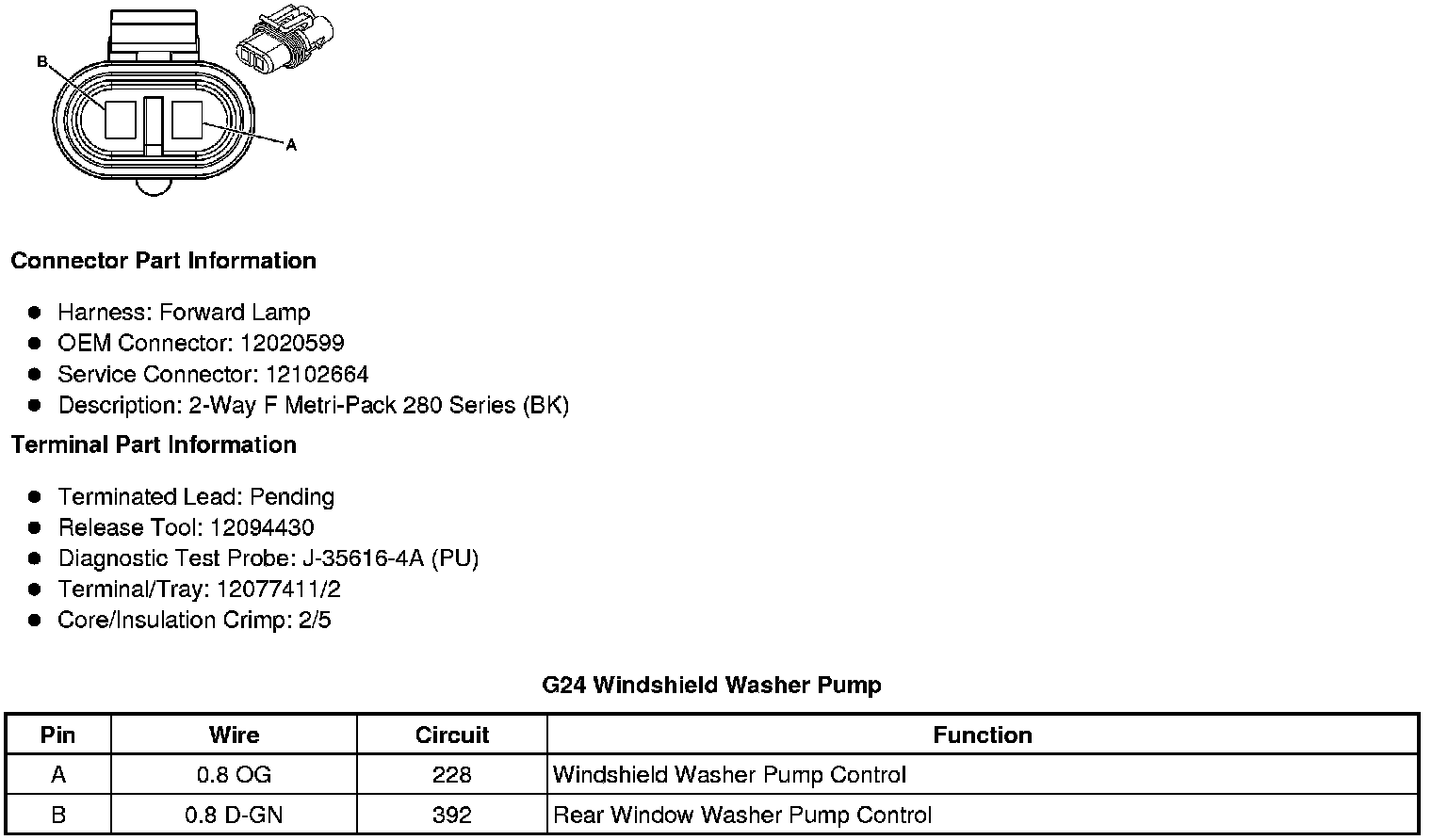

G24 Windshield Washer Pump
