Home >> GMC Truck >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Pinion Flange >> Service and Repair

Pinion Flange: Service and Repair

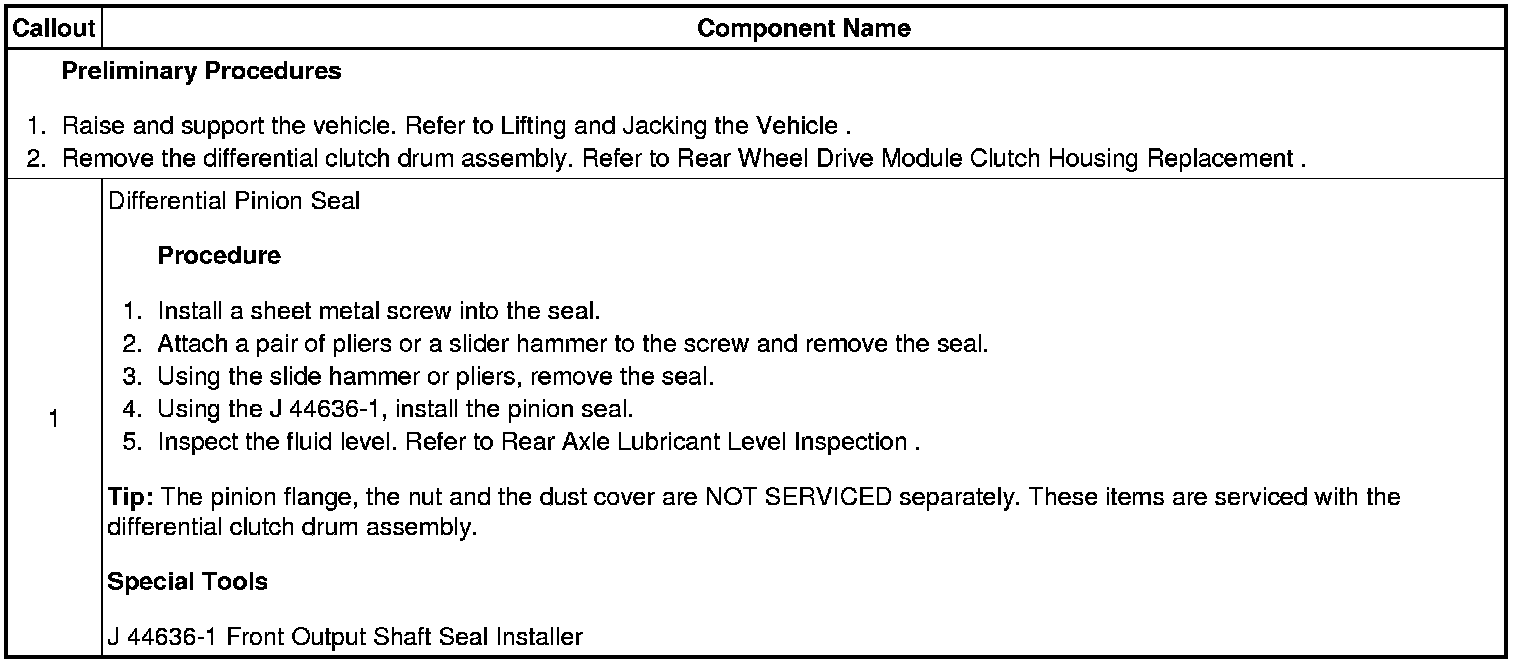

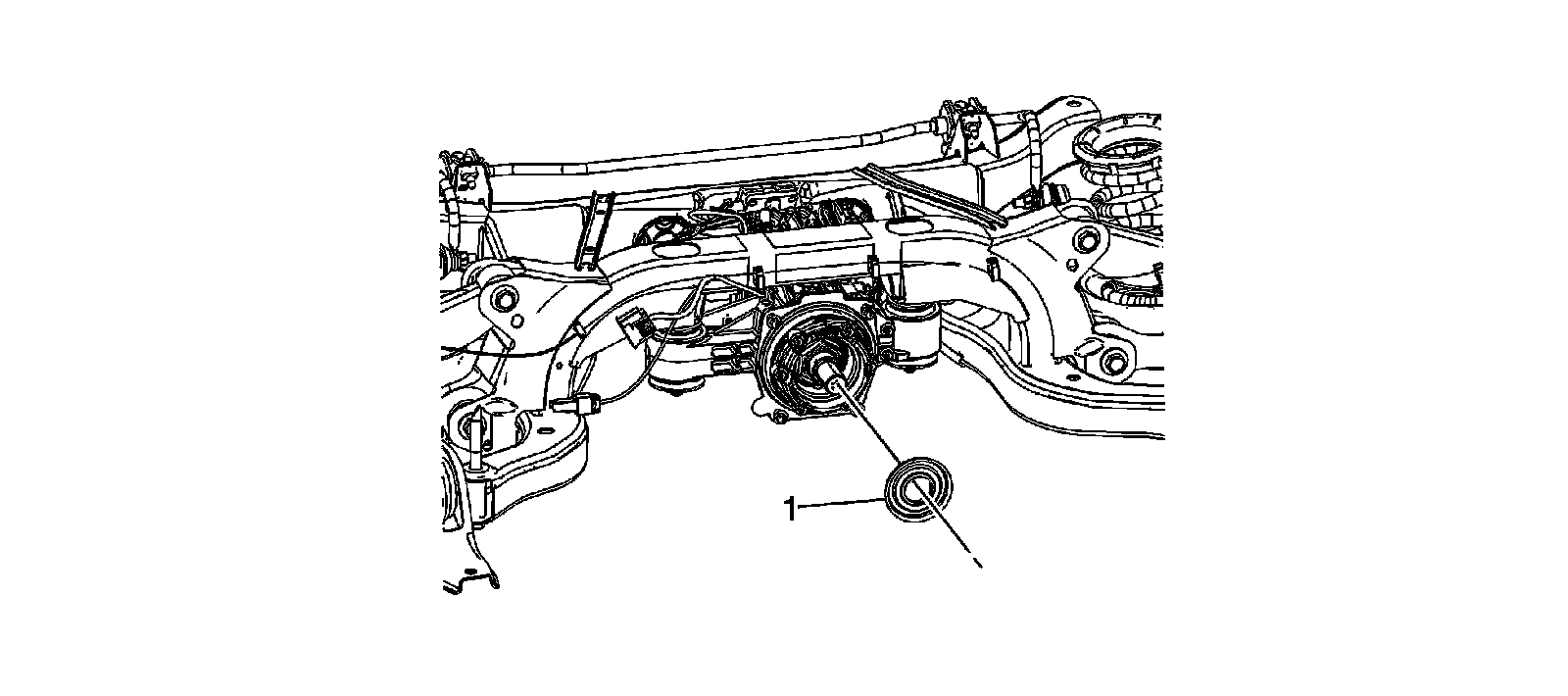

Drive Pinion Flange/Yoke and/or Oil Seal Replacement
