1990
>>
Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Module
>>
Testing and Inspection
Cruise Control Module: Testing and Inspection

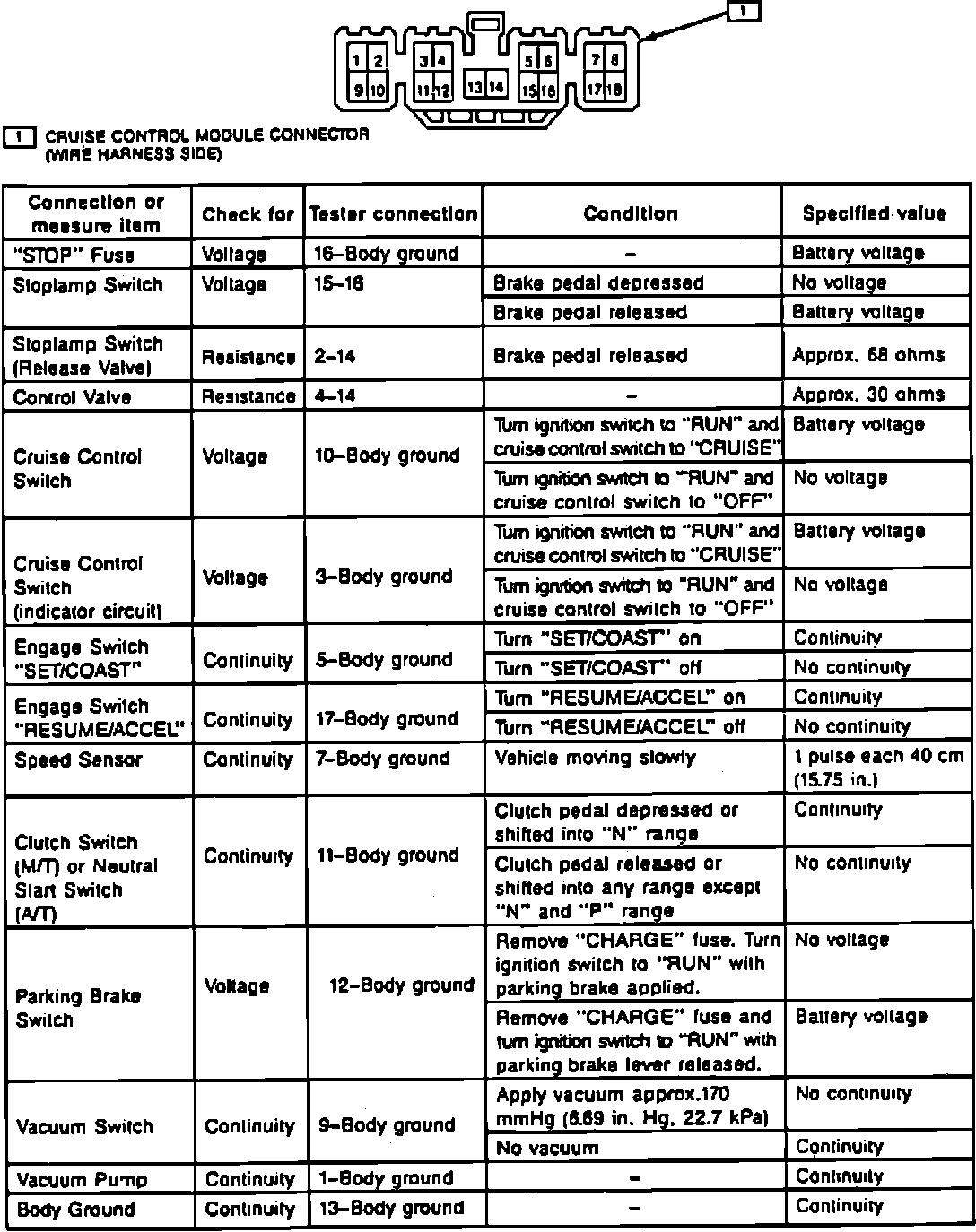

Fig. 16 Cruise Control Module Test Chart:
Refer to
Fig. 16
to test
cruise control module
.
