Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1990
>>
Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Parking Brake Switch Circuit Diagnosis
Parking Brake Switch Circuit Diagnosis
Fig. 10 Parking Brake Switch Circuit Diagnosis (Part 1 Of 2):

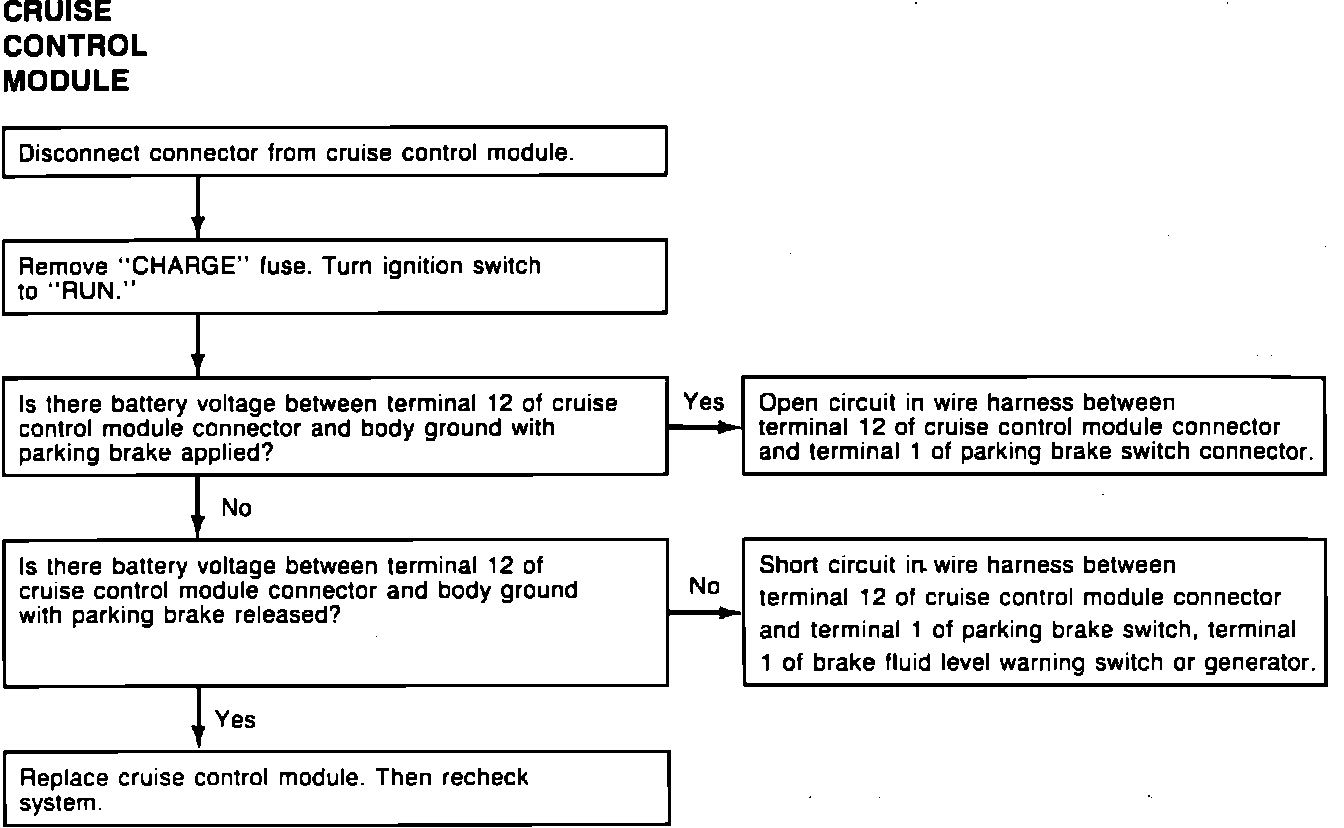

Fig. 10 Parking Brake Switch Circuit Diagnosis (Part 2 Of 2):
