1990
>>
Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
GSI
GSI

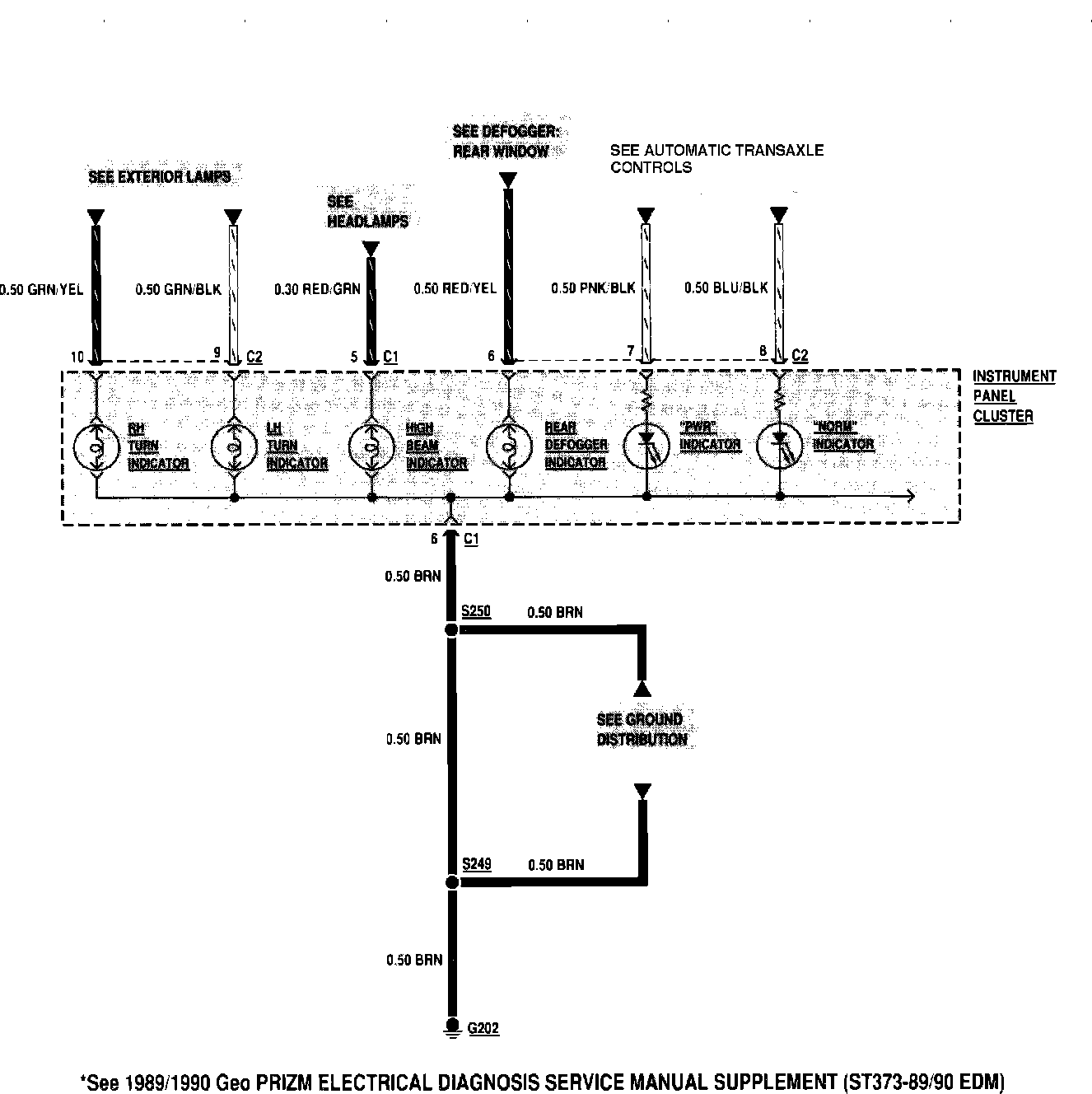

Warnings/Indicators: (Gsi):

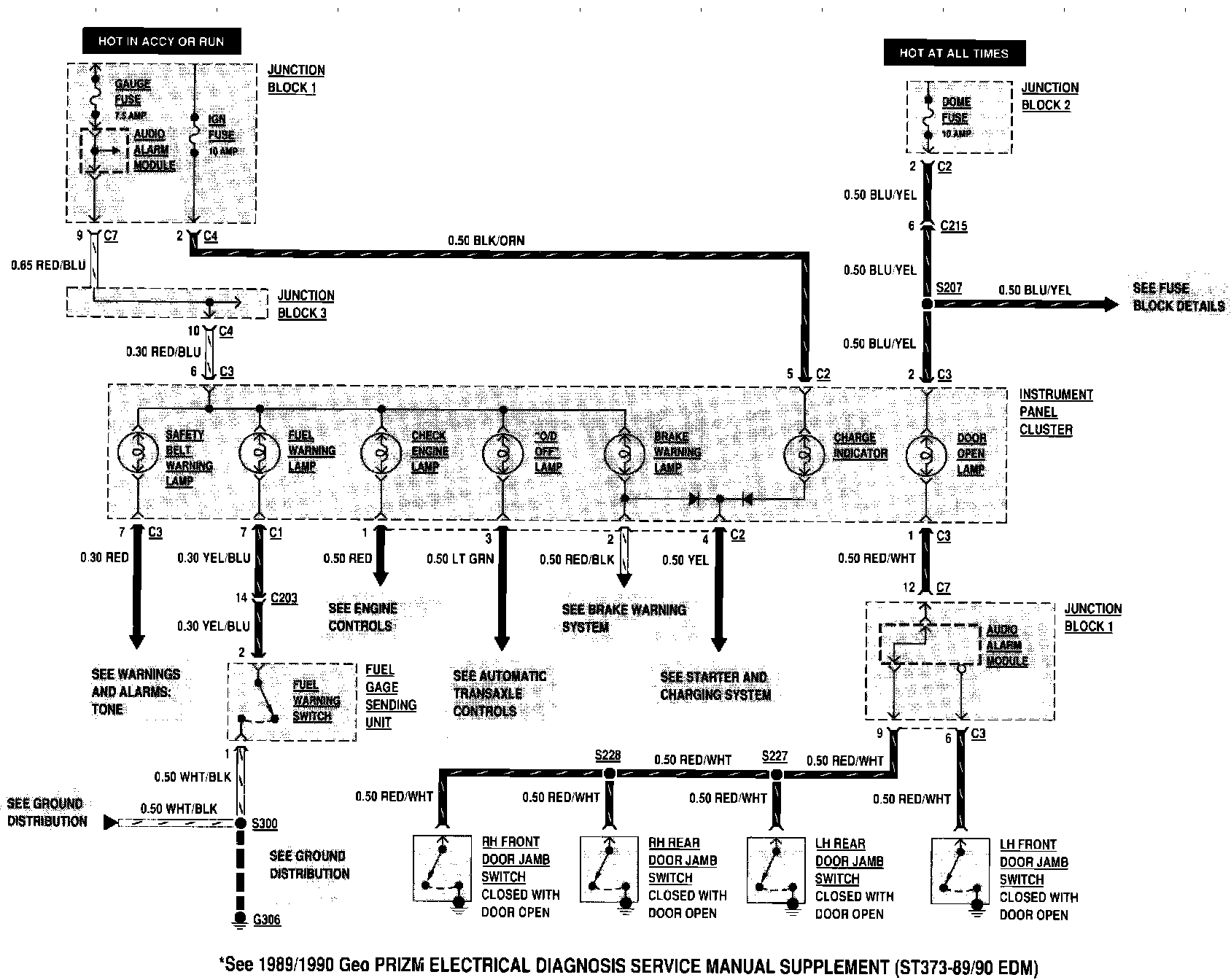

Instrument Panel: Indicators (Gsi):

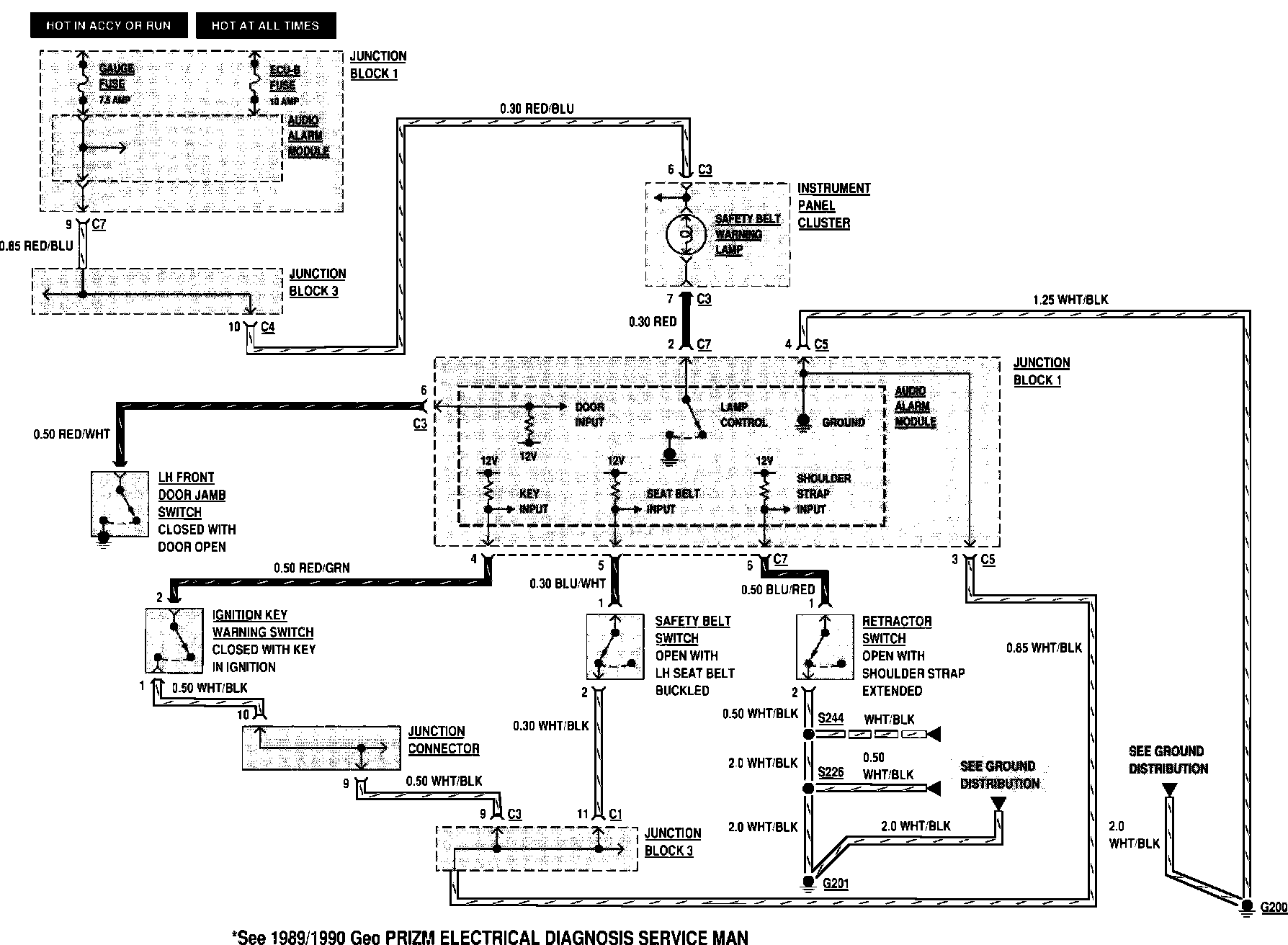

Instrument Panel: Indicators (Gsi):
